GEA POWERSORT 6000
GEA PowerSort
GEA PowerSort 6000 is an innovative separation and sorting system that can be customized to meet customer requirements through GEA’s modular design. It features a combined lane system and package rejector for end-of-line applications. Its purpose is to automatically sort and reject defective food packages produced by thermoforming packaging machines. PowerSort can be controlled via GEA SmartControl HMI and is highly integrated with GEA’s optimized Thermoformer, facilitating maintenance and servicing.
Maximum Control, Maximum Integration, Minimal Fuss.
PowerSort is an innovative separating and sorting system which – thanks to GEA’s modular design – can be configured exactly to customer requirements. This combined lane converger and package rejector features a single pack, pick-and-place system and multi-lane converging system for end-of-line applications. Its purpose is to automatically sort ‘good’ food packages produced by thermoforming packaging machines from ‘bad’ ones. Any empty or defective packages can be rejected in a controlled way with high reliability and efficiency. PowerSort can be controlled by the GEA SmartControl HMI.
In line with the GEA One Line concept it is highly integrated – both mechanically and electrically – with our new optimized GEA thermoformer. Sharing common parts with the thermoformer and other automation equipment – such as the frame or the belt design – makes servicing quicker, easier and more cost effective.
Key benefits
- Maximum control over defective packaging for more reliable line performance
- Unbeatable integration with GEA thermoformer equipment
- Easy to operate using GEA SmartControl HMI (no extra panel required)
- Optimum efficiency due to harmonization with GEA thermoformer
- Minimal footprint thanks to seamless integration
- High performance gripper head is lighter and quicker to exchange than ever
Specifications
Technical Data GEA PowerSort 6000
- Available frame width for base width 460 / 560 mm or 700 mm
- Available frame lengths for index length up to 600 / 850 / 1,100 mm
- Feeding belt for index length up to 850 or 1,350 mm
- Transport conveyor 1 or 2 lane execution
- Outfeed conveyor 1 or 2 lane execution
- 2D- kinematics for pick and place
- Up to 36 separate vacuum circuits
- Vacuum system via integrated pump
- Optional turning function +90° / -180°
- Standard rejection of empty and bad quality packages
- Optional separate rejection of bad quality packages
- Optional separate GEA SmartControl HMI
Campaign

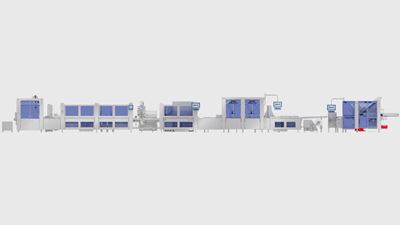

GEA One Line concept
