Rotating Cleaners

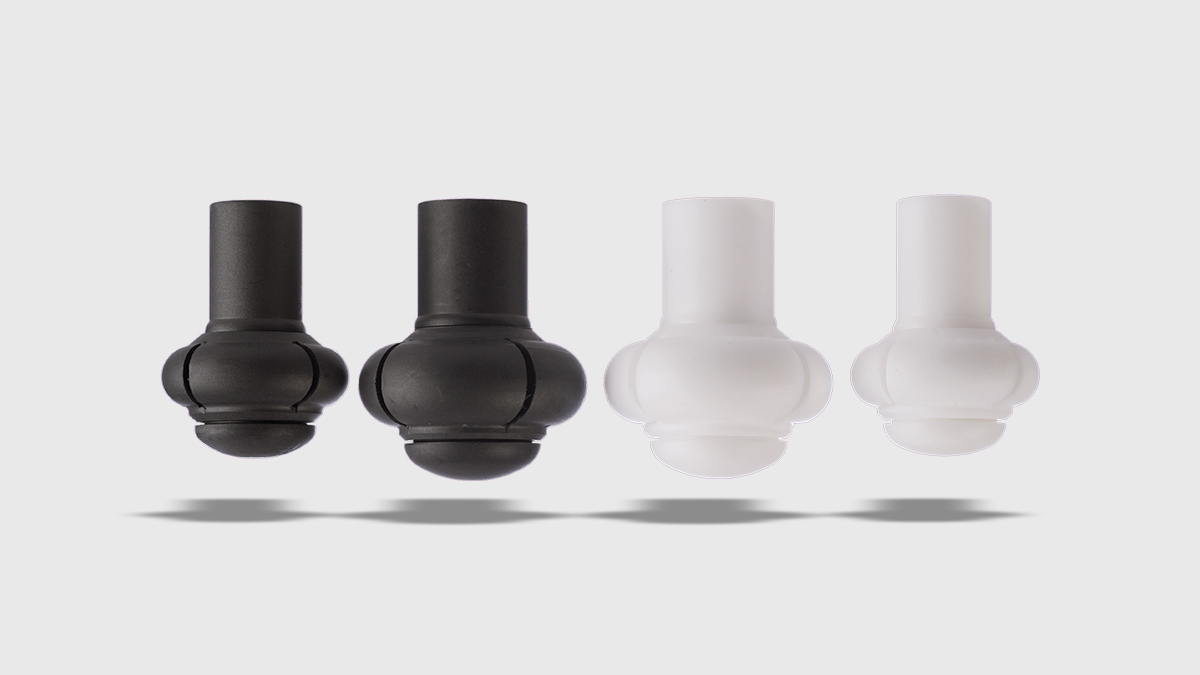

Free Rotating Cleaners Chemitorus & Torus
The rotating spray cleaners Chemitorus and Torus ensure a professional and sustainable cleaning result especially in applications where low flow and low pressure are required. The ability to use them very flexible in numerous industries and in many areas usually cleaned by manual means they can replace static spray balls with a more dynamic wash.
Advantages - Chemitorus
- Hygienic design
- Economic flow rates
- Low operating pressure
- FDA conform
- Versatile range of applications
- Preferred mounting position: any
- Lightweight construction – safer in glass lines settled vessels
- Chemical resistant – ideal for corrosive environments
- High rotation speed
Technical data - Chemitorus
| Chemitorus 50 | Chemitorus 75 | |
| Recommended pressure | 1 – 4 bar (14.5 - 58 psi) | |
| Cleaning diameter | max. 2.2 m (7.2 ft) | max. 3.3 m (10.8 ft) |
| Flow rate | 0.9 - 1.7 m³/h
15 - 28.3 l/min 4 - 7.5 USgpm | 1.8 - 4.0 m³/h
30 - 66.7 l/min 7.9 - 17.6 USgpm |
| Spray pattern | 360°, optional 180° | |
| Operating temperature | max. 65 °C (149 °F) | |
| Ambient temperature | max. 75 °C (167 °F), 30 min | |
| Insertion opening | min. Ø 42 mm (1.65 inch) | min. Ø 52 mm (2.05 inch) |
| Materials | P-PTFE or C-PTFE | |
| Pipe connection | 3 / 8 ” BSP female | ½” BSP female |
| Weight | approx. 0.04 kg (0.09 lbs) | approx. 0.06 kg (0.13 lbs) |

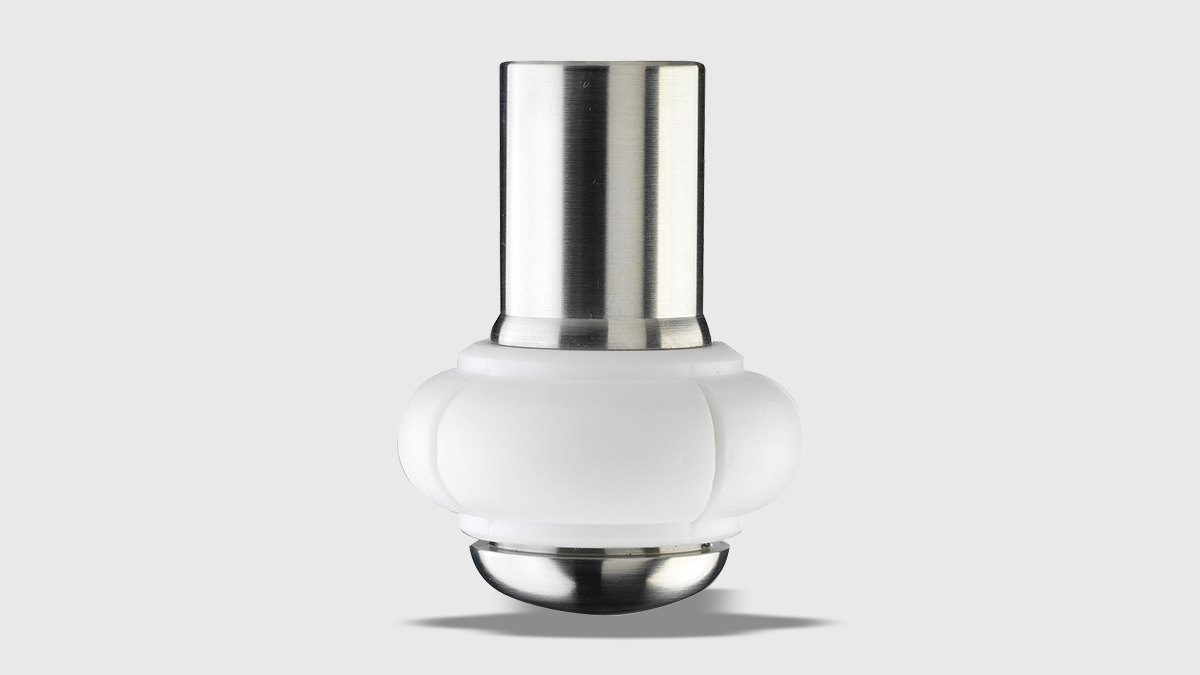

Operation - Torus
Wash fluid enters a drive chamber creating a disc of moving water. The wash fluid exits the unit through the small number of slots in the external disc. The specially designed pattern of slots ensures the high energy droplets use the minimum amount of wash fluid to deliver optimum performance.
Advantages - Torus
- Hygienic design
- Economic flow rates
- Low operating pressure
- FDA conform
- Versatile range of applications
- Preferred mounting position: any
- Available for tank safety system VARITOP®
Applications - Torus
Torus ideally suited to low flow and low pressure applications. The high energy, fast moving droplets provide very effective impingement up to two meters, meaning a single unit can clean vessels up to four meters diameter.
Torus is used in applications such as glove box / biohazard containment areas or to replace standard spray balls in larger vessels. It meets all essential FDA material requirements. This makes the unit highly suitable for the pharmaceutical, biotech, food, beverage and other hygiene conscious industries.

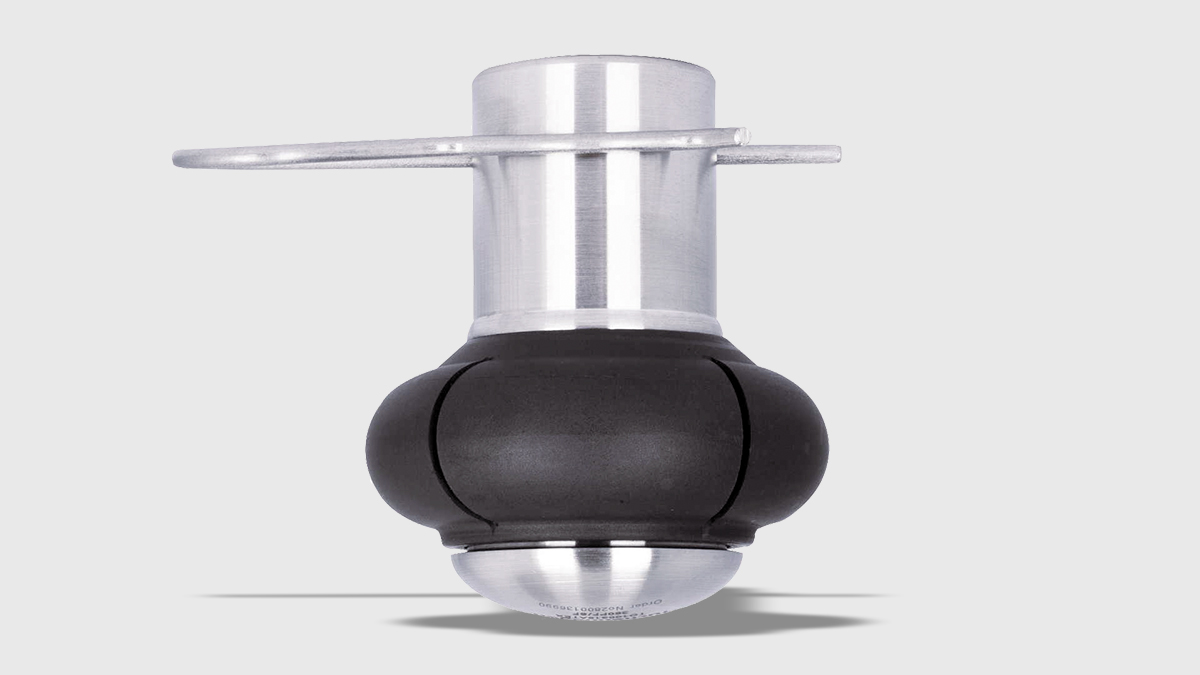

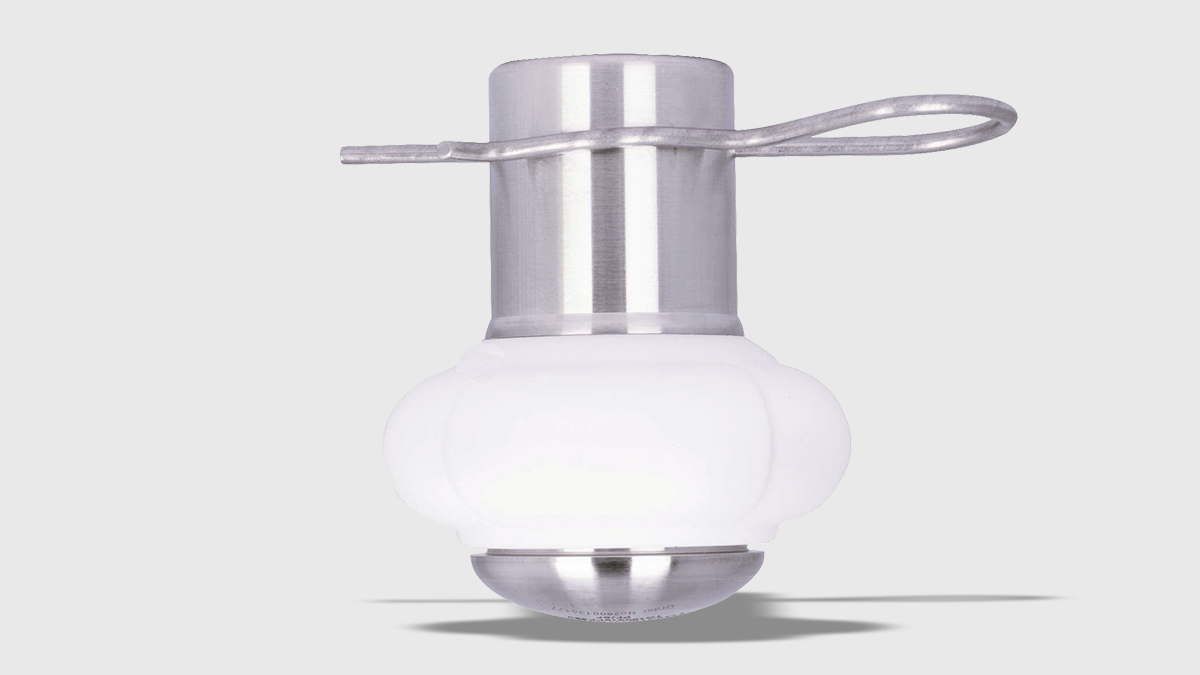

Technical data - Torus
| Torus 50 | Torus 75 | Torus 100 | |
| Recommended pressure | 1 – 4 bar (14.5 - 58 psi) | ||
| Cleaning diameter | max. 2.2 m
(7.2 ft) | max. 3.3 m
(10.8 ft) | up to 4.8 m (15.7 ft) |
| Flow rate | 0.9 - 2 m³/h
15 - 33.3 l/min 4 - 8.8 USgpm | 1.8 - 4.6 m³/h
30 - 76.7 l/min 7.9 - 20.3 USgpm | 3 – 7.1 m3/7
50 - 118.3 l/min 13.2 - 31.3 USgpm) |
| Spray pattern | 360°, optional 180° | ||
| Operating temperature | max. 65 °C (149 °F) | ||
| Ambient temperature | max. 75 °C (167 °F), 30 min | ||
| Insertion opening | BSP/NPT min. Ø 42 mm (1.65 inch) / Pin Fix 58 mm (2.38 inch) | BSP/NPT min. Ø 52 mm (2.05 inch) / Pin Fix 68 mm (2.38 inch) | min. Ø 85 mm (3.35 inch) |
| Materials | Stainless steel 316L (1.4404)
with P-PTFE or C-PTFE | ||
| Pipe connection | 3 / 8 " BSP / NPT female,
Pin Fix for ½" OD pipe (12.7x1.6 mm) | ½" BSP / NPT female,
Pin Fix for ¾" OD pipe (19.05x1.6 mm) | PinFix for 1" OD pipe (25.4x1.6mm) |
| Weight | approx. 0.1 kg (0.22 lbs) | approx. 0.15 kg (0.33 lbs) | approx. 0.2 kg
(0.44 lbs) |
Downloads
Related Products
Free Rotating Cleaners Clipdisc & Sanidisc
The Free Rotating Cleaners Clipdisc and Sanidisc are designed for use in ultra hygienic applications where product purity and elimination of contamination problems are essential. The simple easily disassembled construction meets all the needs of hygienic design standards.

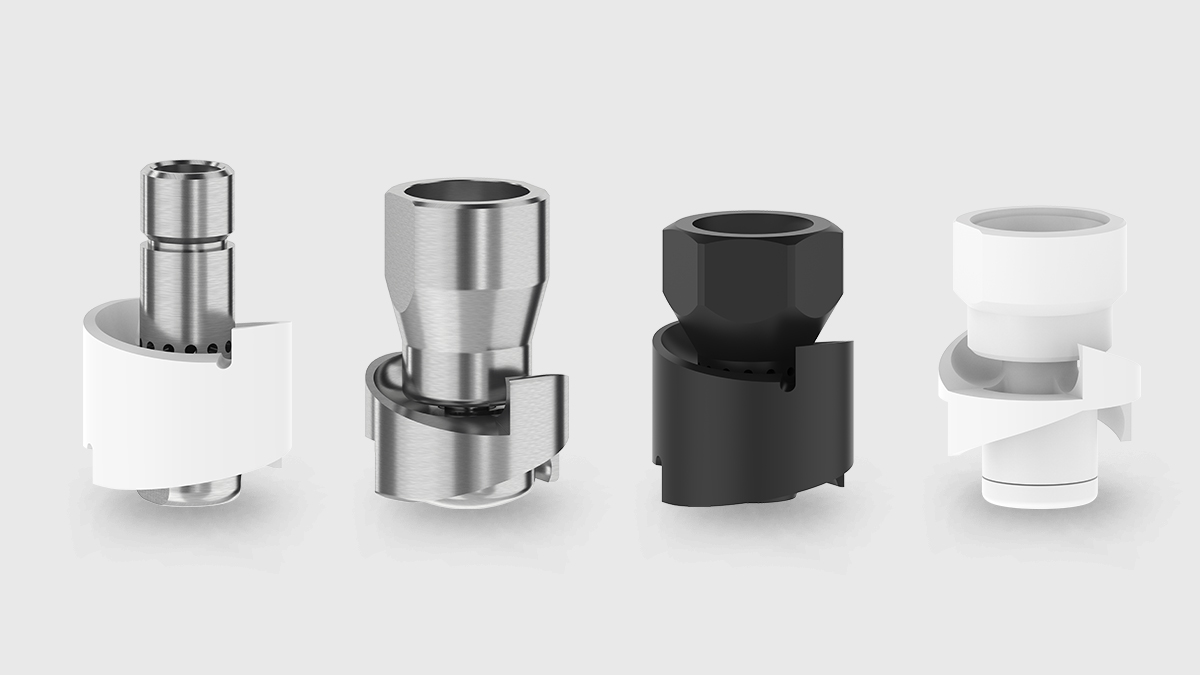

Turbodisc & Chemidisc
