Orbital Cleaners
Orbital Cleaner Cyclone
The Cyclone is a liquid driven Orbital Cleaner that can be used for mobile or stationary applications. The round jet nozzles rotate around two axes simultaneously and produce focused high impact jets generating a highly efficient 3D wash pattern. Due to its compact design the Orbital Cleaner Cyclone can be inserted and mounted through 76.2 mm / 3 inch insertion openings.
Advantages
- Hygienic and compact design
- Ball bearing free
- Self-cleaning
- FDA conform
- Fits through 3 inch diameter opening
- Economic flow rates
- Easy-to-maintain
- Reproducible cleaning by monitoring of rotation
Applications
The hygienic and compact design combined with the high power jets, makes it perfect for cleaning a variety of vessel sizes and manufacturing equipment, also where hygiene is a priority. The units can be used in the brewing, beverage, dairy, food, chemicals, coatings and transport industries -as permanently fixed or mobile installations.
Technical data
| Item | Size |
|---|---|
| Recommended pressure | 4 – 10 bar (58 - 145 psi) |
| Cleaning diameter | up to 12 m (39 ft) |
| Flow rate | 2.5 – 6.2 m³/h
(42 - 103 l/min / 11.1 - 27.2 USgpm) |
| Spray pattern | 360° |
| Nozzle characteristics | 4 nozzles (3 mm, 4 mm diameter) |
| Operating temperature | 95 °C max. (203°F) |
| Ambient temperature | 140 °C max. (284°F), 30 min |
| Insertion opening | min. Ø 72.6 mm (3 inch) |
| Materials | Stainless Steel 316L (1.4404)
with C-PTFE |
| Pipe connection | ¾" BSP or NPT Female |
| Weight | 2.0 kg (4.4 lbs) |
Downloads
Related Products

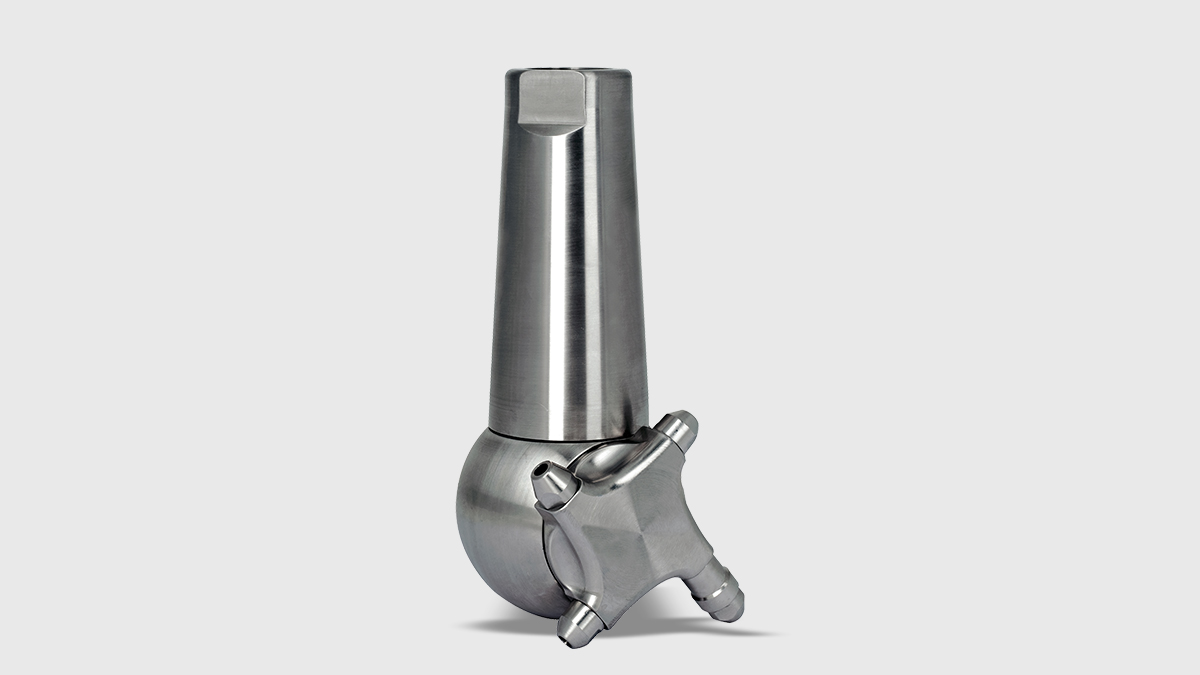

Orbital Cleaner Typhoon
The Orbital Cleaner Typhoon is liquid driven and can be used for mobile or stationary applications. The round jet nozzles rotate around two axes simultaneously and produce focused high impact jets generating a highly efficient 3D wash pattern.

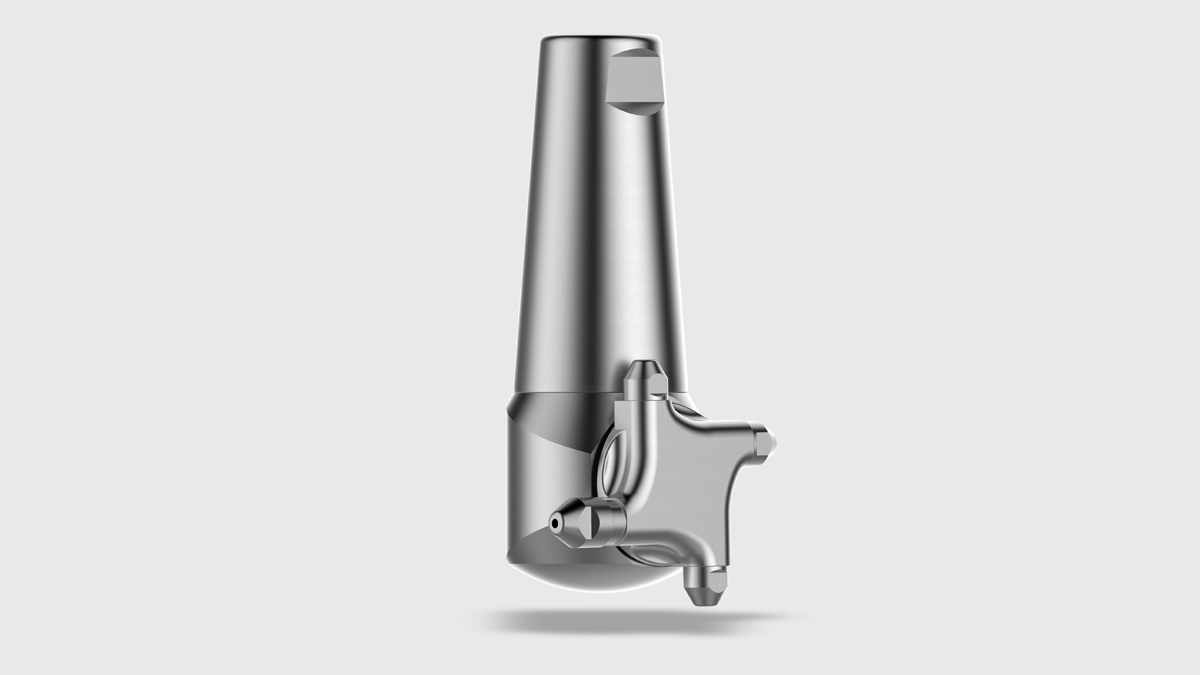

Orbital Cleaner Twister
The Orbital Cleaner Twister is liquid driven and can be used for mobile or stationary applications. The round jet nozzles rotate around two axes simultaneously and produce focused high impact jets generating a highly efficient 3D wash pattern.

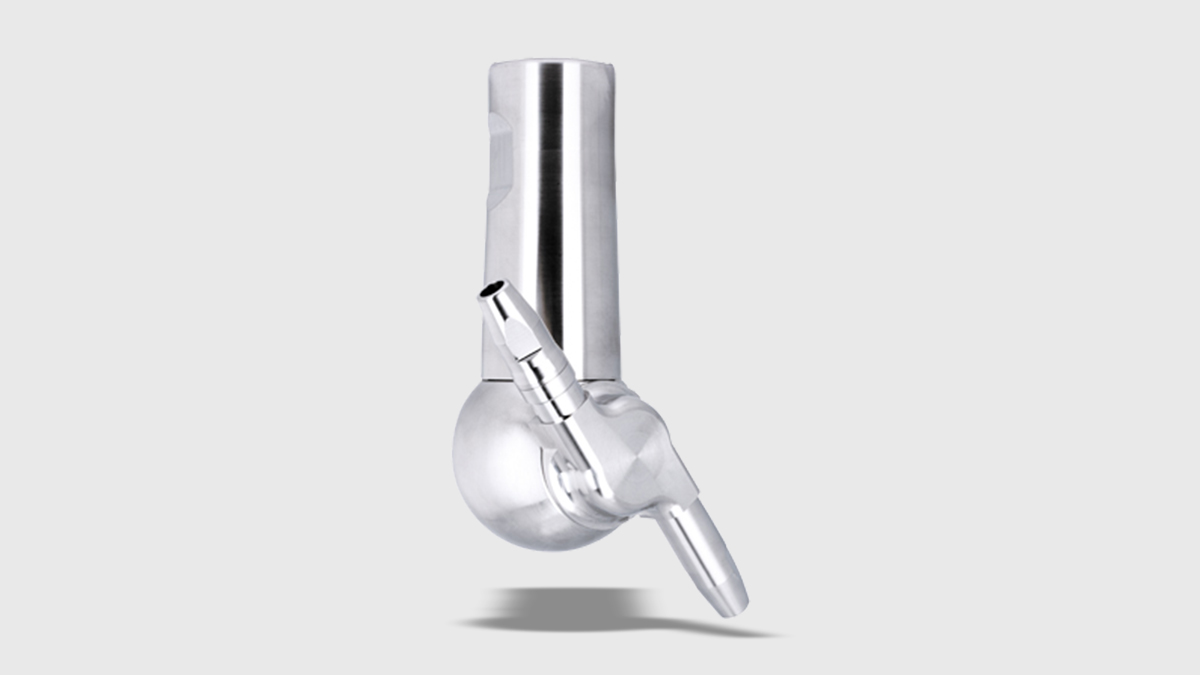

Orbital Cleaner Tornado
The Orbital Cleaner Tornado is liquid driven and can be used for mobile or stationary applications. The round jet nozzles rotate around two axes simultaneously and produce focused high impact jets generating a highly efficient 3D wash pattern.

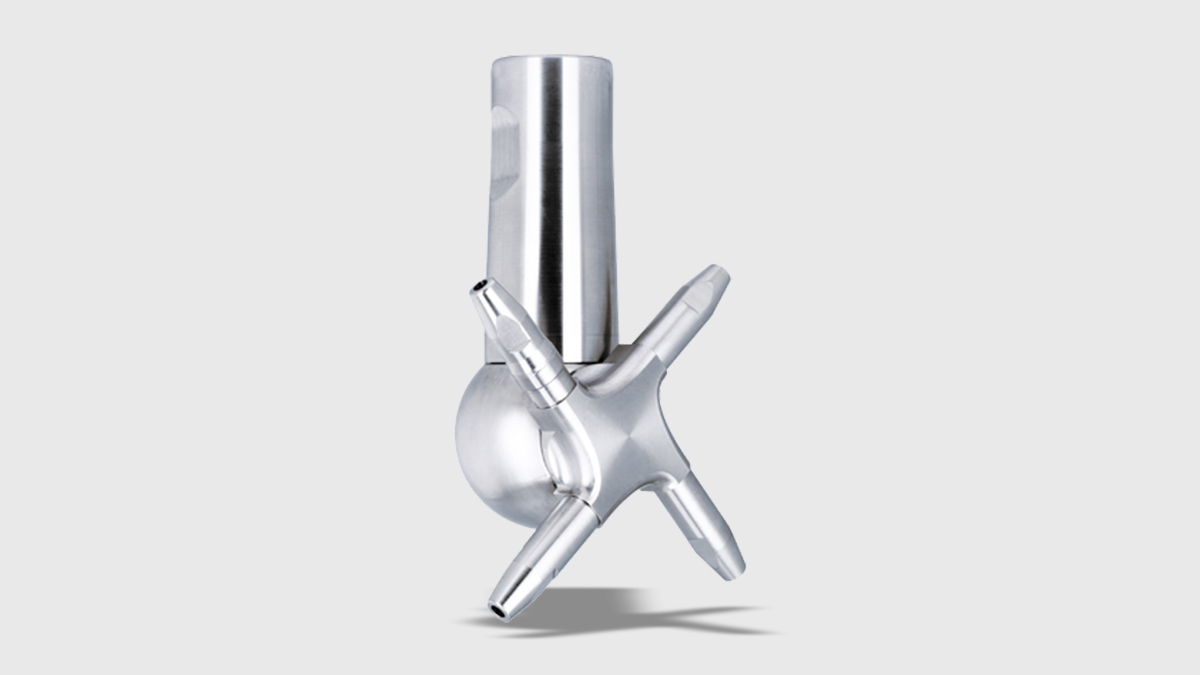

Orbital Cleaner Tempest
