Orbital Cleaner OC200
The OC200 is the most powerful and first modular cleaner of the range. This cleaner is designed for most efficient cleaning of large vessels and demanding cleaning tasks in various applications, e.g. in the food and beverage industry.
Advantages
- Hygienic and modular design
- Easy adjustments
- Efficient & reliable cleaning
- Low resource consumption
- High robustness
- High plant availability
- Long lifetime
- Easy maintenance
Applications
The hygienic and modular design combined with the high impact jets allow powerful and efficient cleaning of large vessels and difficult cleaning tasks, also where hygiene is a priority. The unit can be used in various applications including the brewing, beverage, dairy, food, chemicals, coatings and transport industries - as permanently fixed or mobile installation.
Technical data
| Soiling classification | IV |
| Cleaning diameter | max. 36 m / 118 ft |
| Spray pattern | 360° |
| Flow range | 19 - 65 m³/h
317 - 1,083 l/min 84 - 286 US gpm |
| Pressure range | 4 - 10 bar / 58 - 145 psi |
| Optimal range | 6 - 8 bar / 87 - 116 psi |
| Full pattern time | 8 - 21 min |
| Weight | 5.7 - 7.3 kg |
| Operating temperature | max. 95 °C / 203 °F |
| Ambient temperature* | max. 140°C / 284°F |
| Insertion opening | Ø 200 - 370 mm
Ø 7.88 - 14.57 inch** |
**depending on nozzle carrier and nozzle length

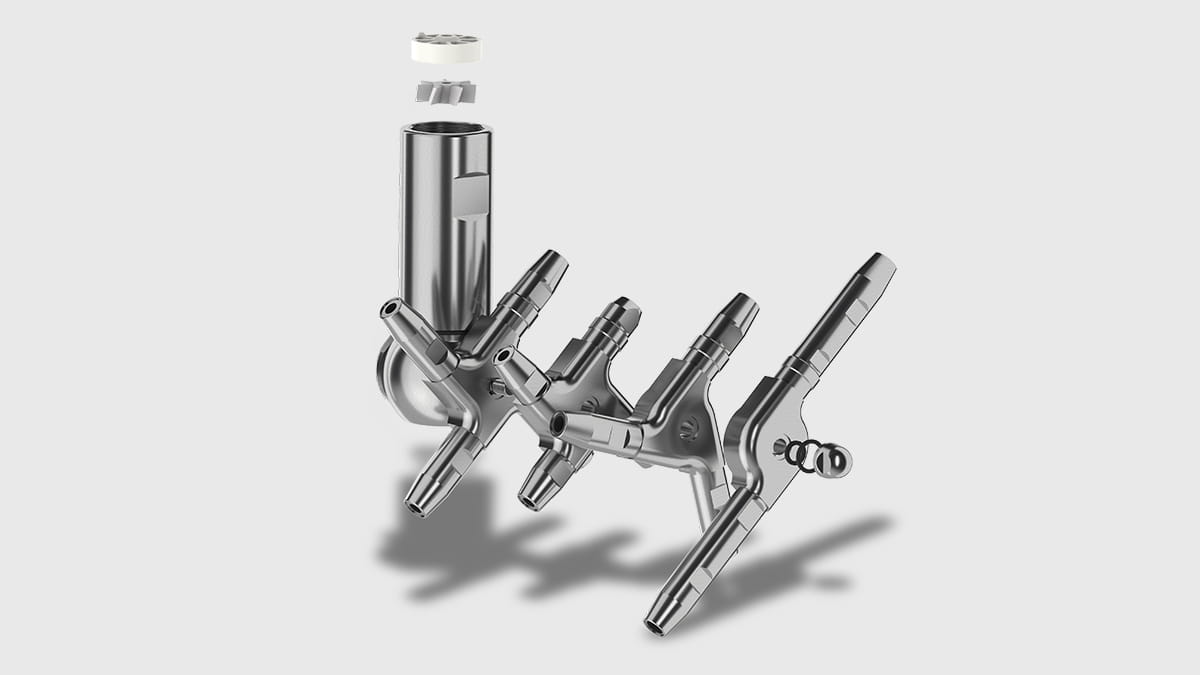

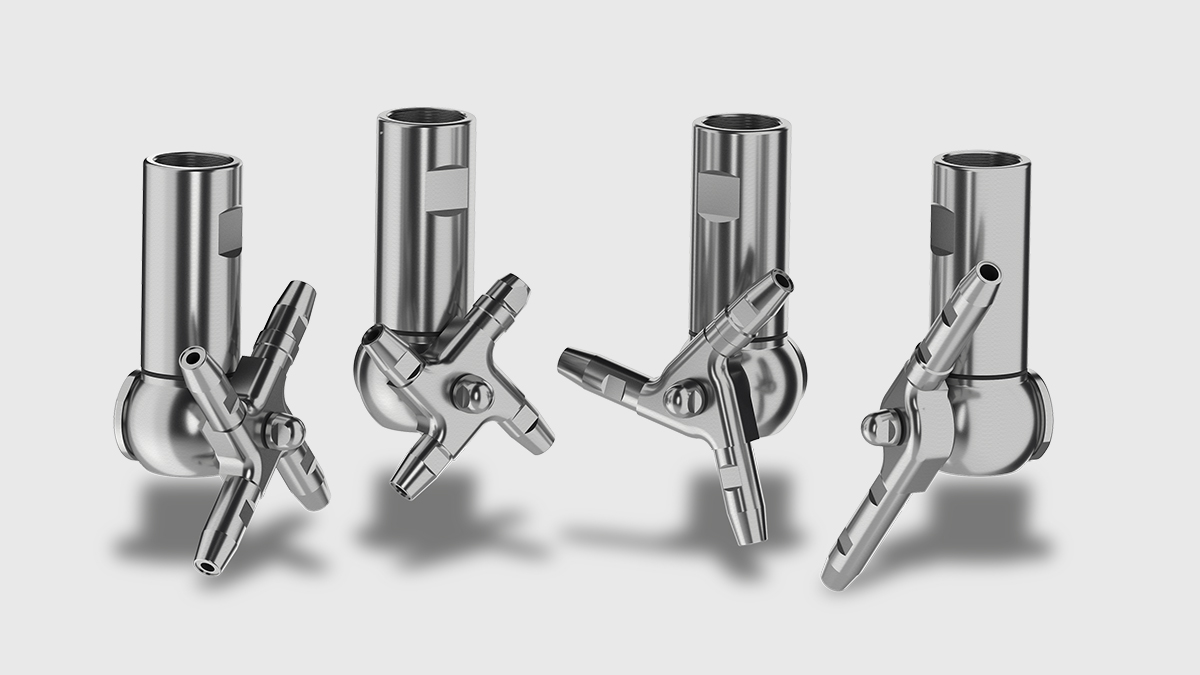

Modularity
The orbital cleaner OC200 is totally adjustable to the cleaning process, thus saving time and resources. At operating pressures from 4 to 10 bar, OC200 can clean tanks up to 36 m diameter. Thanks to its modularity it covers a wide range of flow rates, spray distances and speeds.
Nozzle options

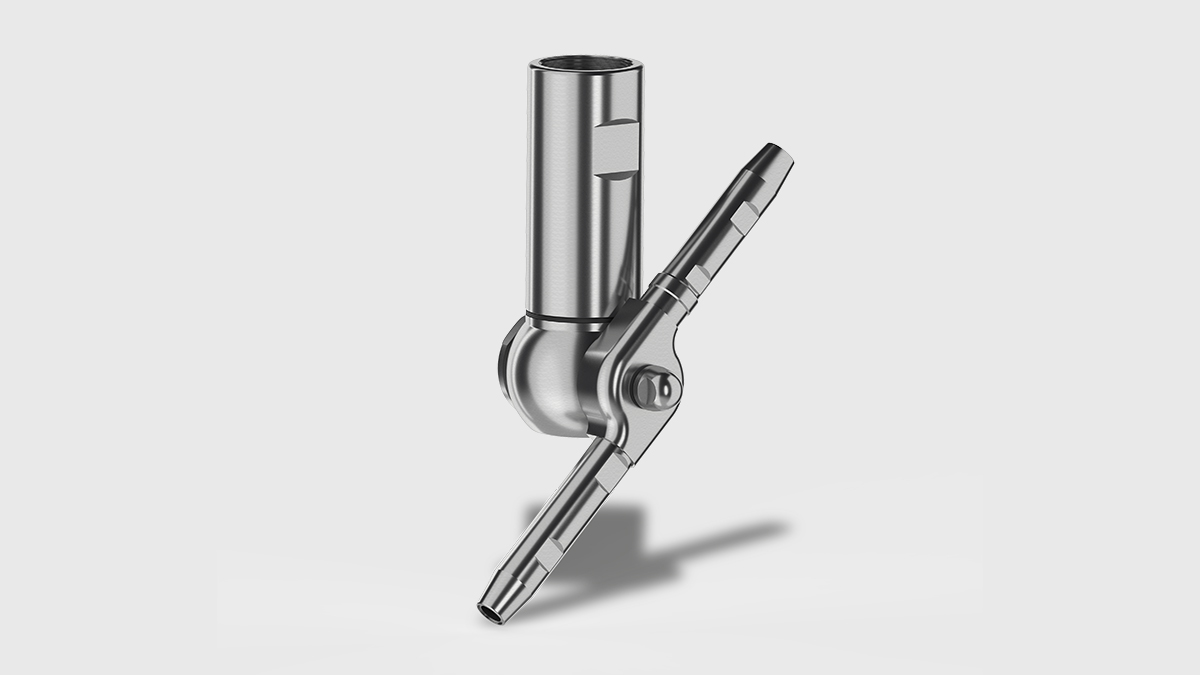

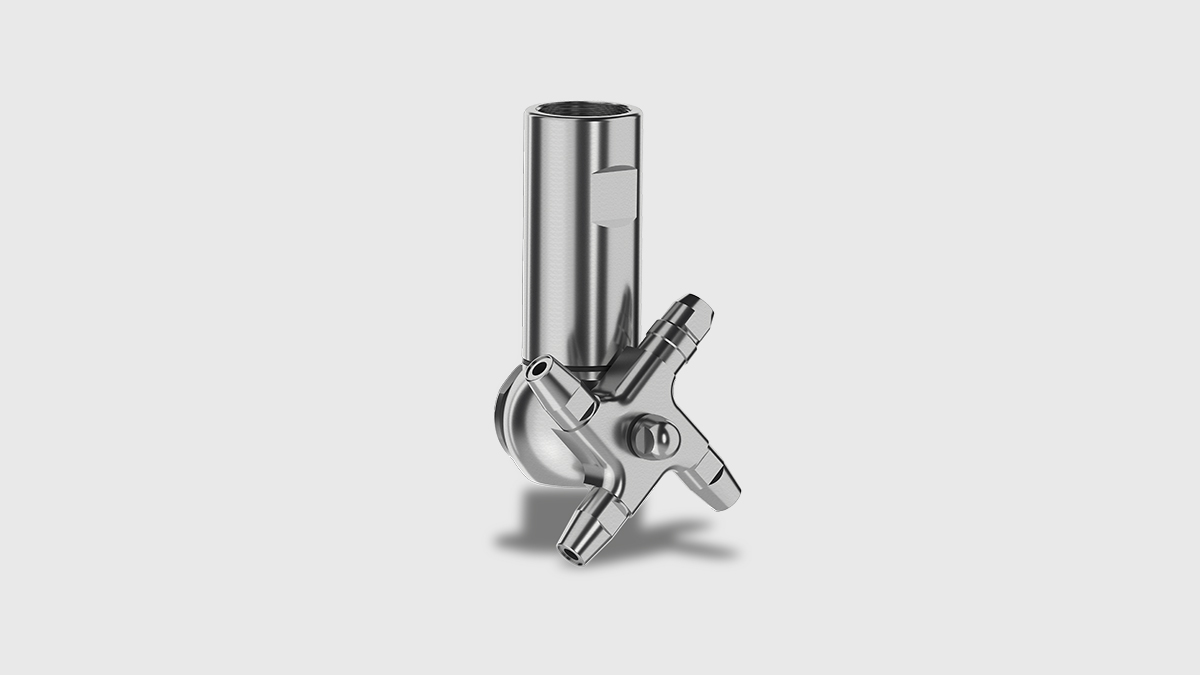

- Short, long and extended nozzle options to adjust impact and spray projection
- Seven different nozzle diameters from 9 to 15 mm to optimize flow, cycle time and spray projections
Nozzle carrier options

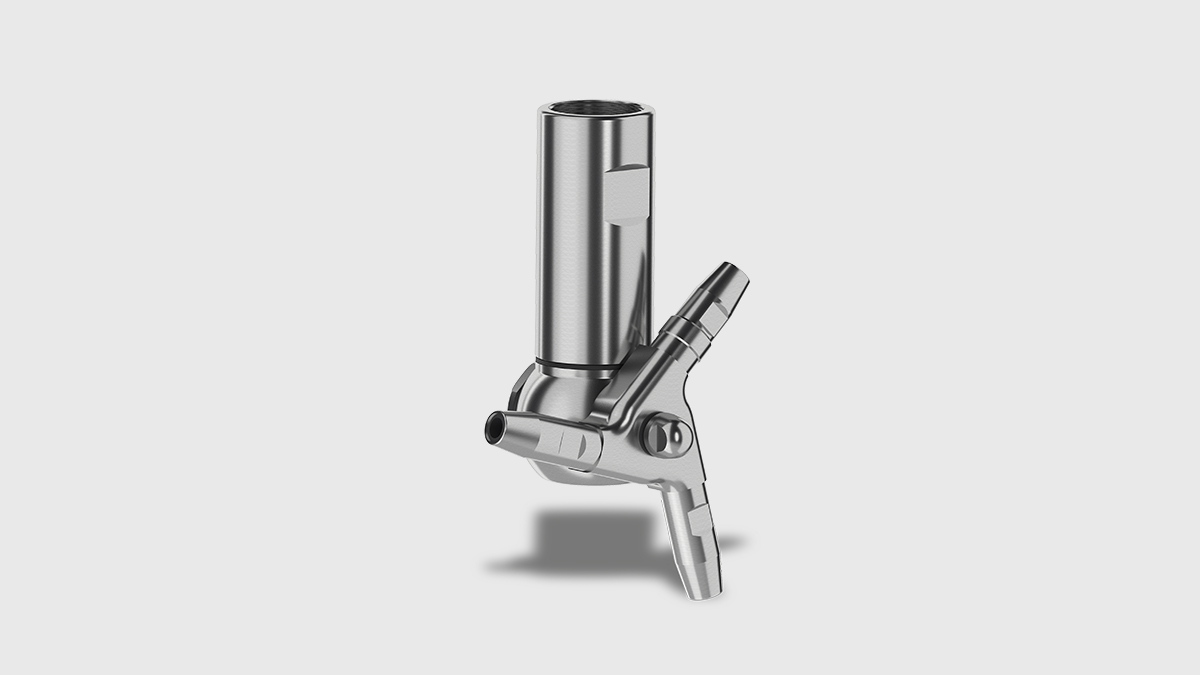

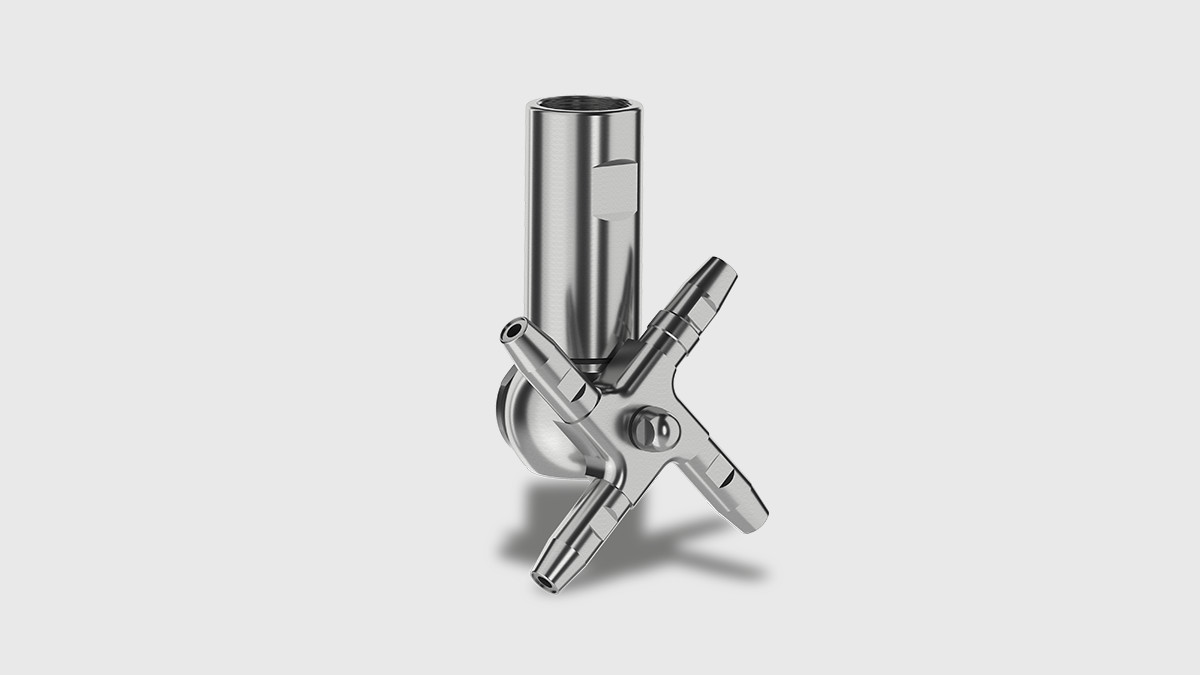

- Two, three or four nozzles to meet requirements regarding soiling levels, flows and insertion openings
Rotor and stator options
- Various rotor and stator combinations to adjust speed
Main cleaner body
- Remains constant with all options, making changes fast and easy
