Static Cleaners

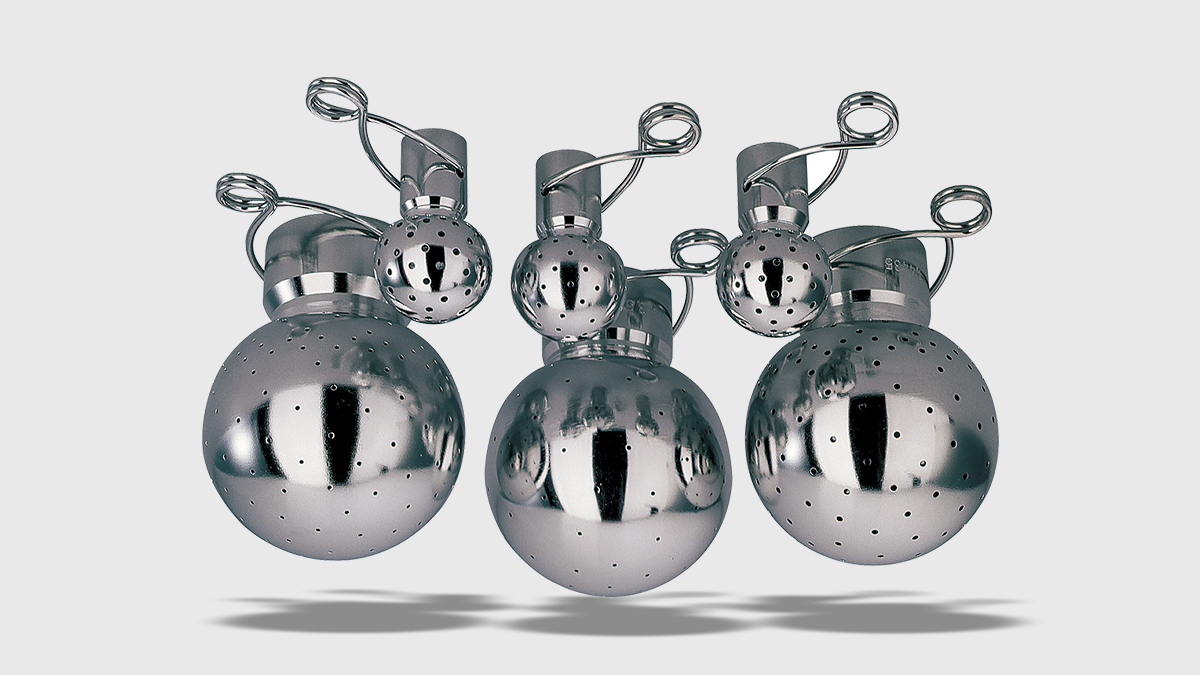

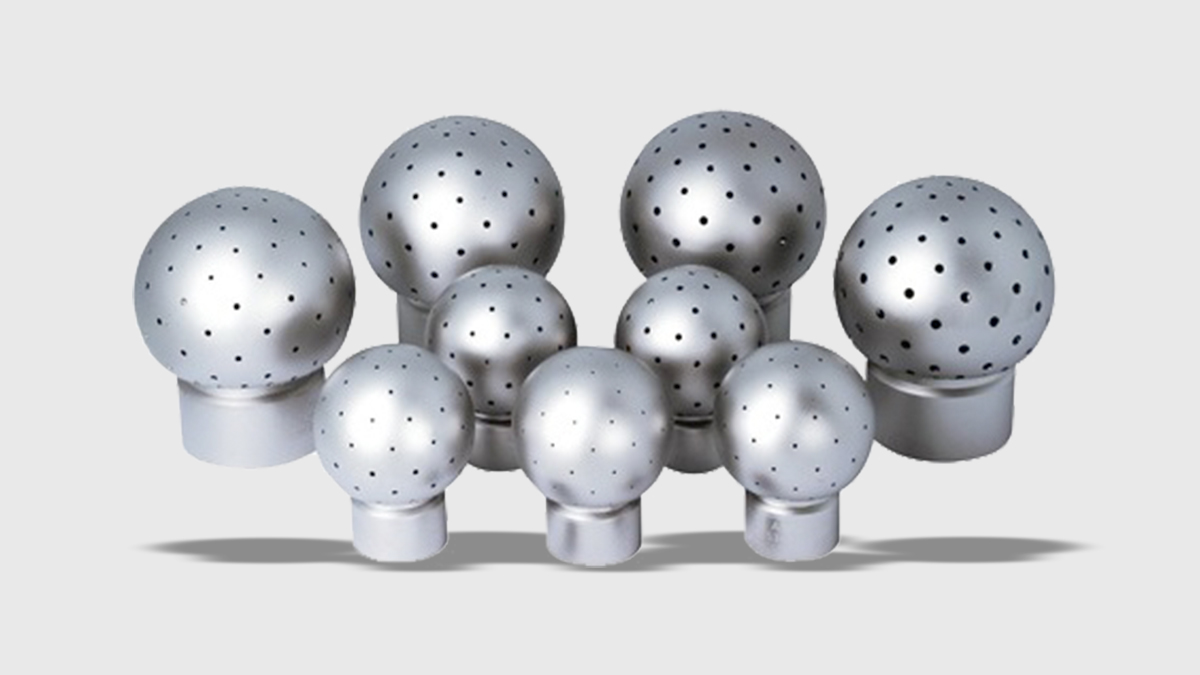

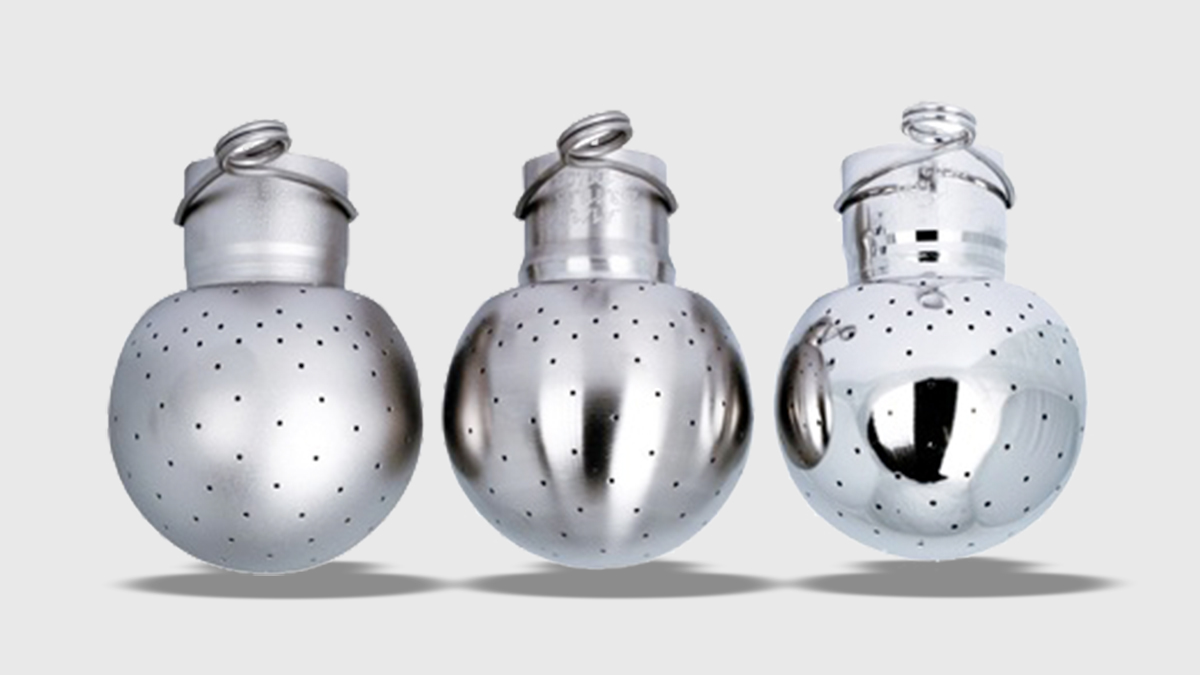

Spray balls are the main components for cleaning tanks and vessels, e.g. storage tanks, CIP tanks, milk collecting trucks. They offer a variety of sizes, flow rates and configurations for a broad scope of cleaning jobs. Spray balls as static cleaners are designed for flush cleaning with a high flow rate, thus providing powerful flushing at low pressure.
The Spray Balls ensure a professional and sustainable cleaning result in low pressure applications with a high cost efficiency and simple handling. They are ideally suited for low flow applications of soiling class 1 and are being used in numerous industries.
Item | Size |
---|---|
Recommended pressure | 1 - 2.5 bar (14.5 - 36.3 psi) |
Cleaning diameter | up to 8 m (26.2 ft) |
Flow rate | 0.9 - 66.7 m³/h
15 - 1,112 l/min 4 - 294 USgpm |
Spray pattern | 188° - 360° |
Operating temperature | 95 °C (203 °F) |
Materials | stainless steel 316L (1.4404),
316L (1.4435), 1.4539, alloy 59 (2.4605) |
Pipe Connection | clip fastening |
Surfaces | ground, electropolished |
The tank safety system VARITOP® is a modular system based on standardized components. VARITOP® is used for tank cleaning, to protect tanks against inadmissible overpressure and vacuum and for controlled gassing and degassing.
Cleaning lances, dirt arrester for cleaning devices, protection cage for orbital cleaners, mobile / stationary trestle for cleaners
