Mechanical Dewatering
Dewatering Screw Press for Vital Wheat Gluten
Increase dryer throughputs and decrease running costs.
Screw Press Operation
Wet gluten is received from the customer’s upstream process within an integral buffer hopper, mounted above the machine. This hopper includes screens for drainage of free water and provides a constant feed for the press. The conical screw compresses a thin layer of wet gluten against fine perforated screen plates, to express water from the material before feed to the dryer.
Automatic Cleaning System (Patented)
An automatic cleaning system with high pressure pump and dedicated PLC control system washes the press, during continuous operation and without need for manual intervention. In GEA’s special patented design, distribution pipework is kept separate from the process within a single motive multi-core spray lance. This allows intense and efficient cleaning of individual zones with minimum moving parts and low water consumption. The CIP system not only ensures food and operator safety, but it also allows for a reliable process and minimum maintenance.
Features
- Specifically designed for Vital Wheat Gluten drying
- Flexible design with single press and twin press for high capacity
- Integral buffer/drainage hopper
- Sturdy and robust design
Benefits
- Reduces feed moisture to 66% and below
- Provides optimum performance, energy efficiency and capacity
- Automatic high pressure CIP for operator & food safety and minimum maintenance
- Low water consumption
Downloads
Related Products

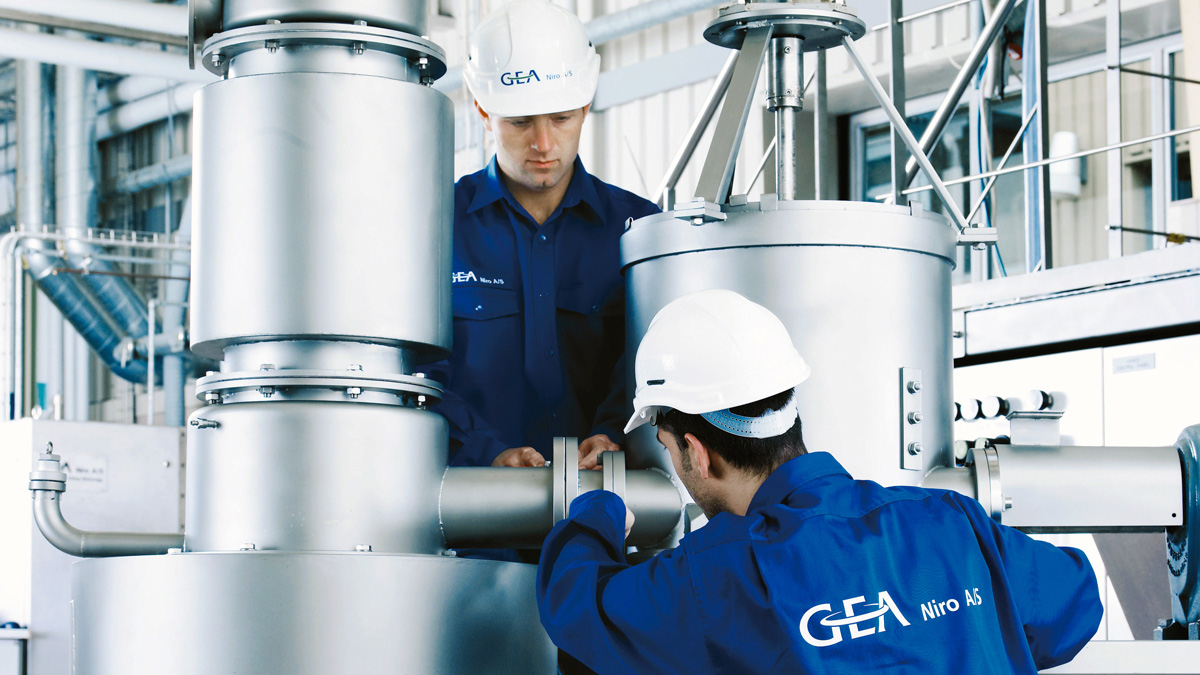

SWIRL FLUIDIZER®
Dry pastes, filter cakes and viscous slurries more cost-effectively with the SWIRL FLUIDIZER®

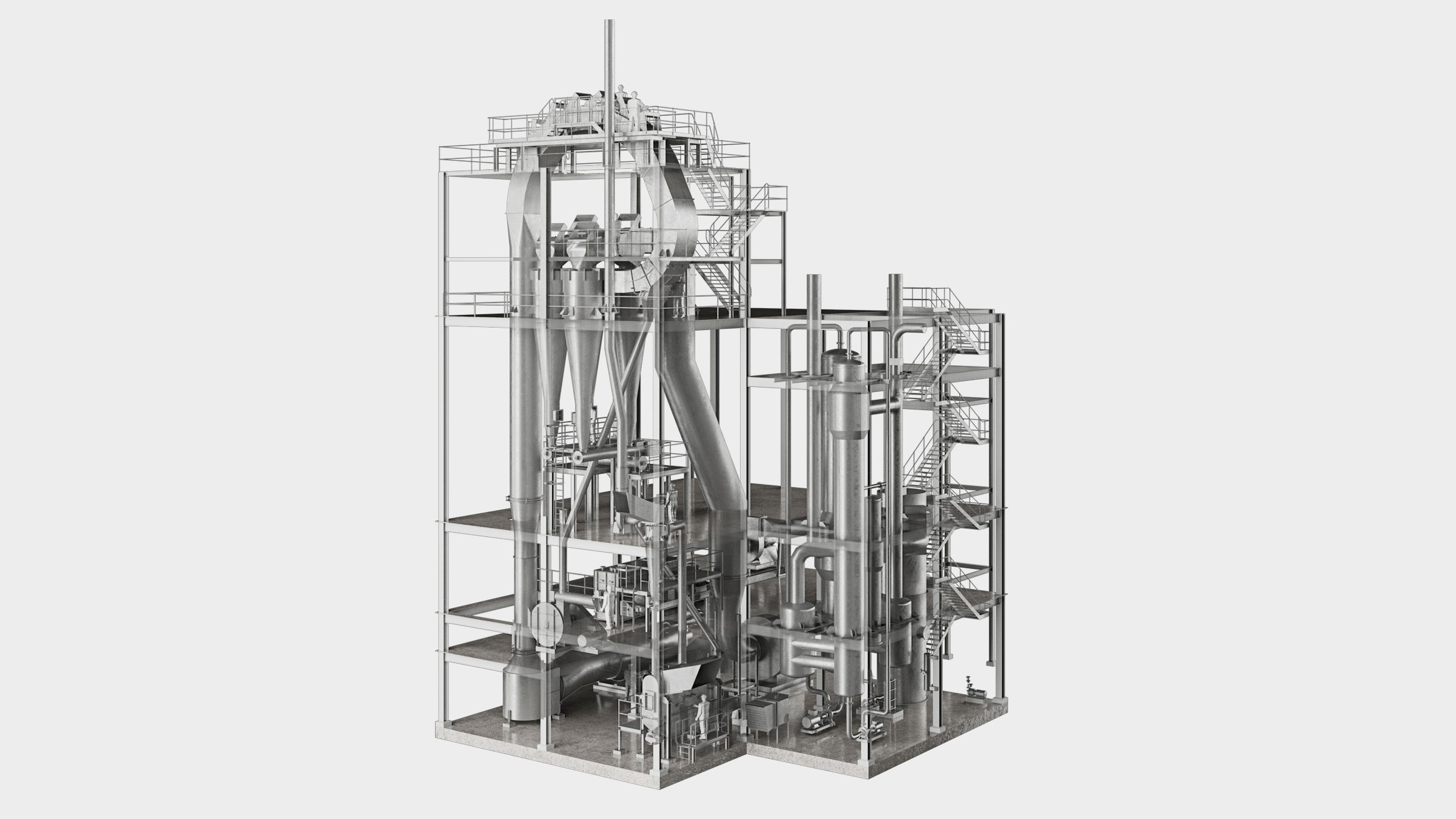

Feed-Type Ring Dryer
The Feed-Type Ring Dryer incorporates a top bend and simplified manifold, with the heavier material recycled via a chute into the wet feed disperser. The Feed-Type Ring Dryer is used for waste products, sludges, animal feeds, organic fertilizers and chemicals.

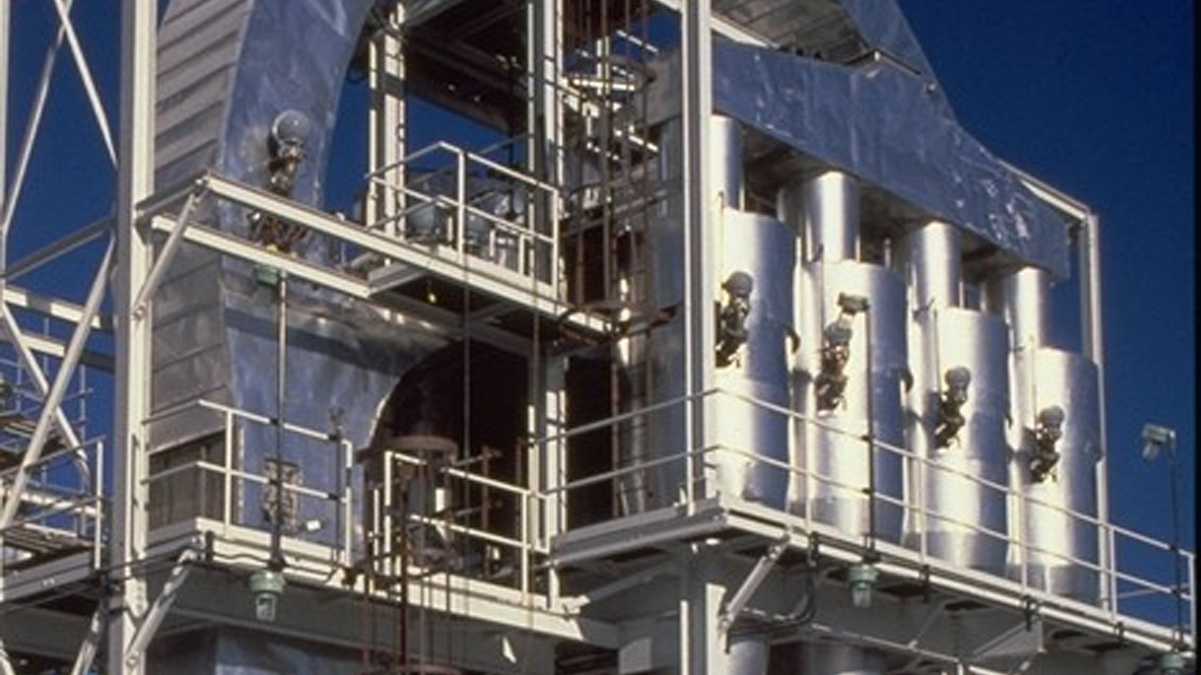

P-Type Ring Dryer
In addition to improving the thermal efficiency of the system, the use of the P-Type manifold in recycling the solids to a cooler section of the system, also minimizes the risk of thermal degradation. As a result the P-Type Ring Dryer is well suited to use with thermally sensitive materials including modified starches and soy fibre.
