Palletizers & Depalletizers
Depalletizer Resolvis
Resolvis is a highly accurate depalletizer with fast, gentle lift/lowering motion, capable of operating at speeds of up to 2.5 layers/min.
The depalletizer Resolvis is capable of operating at speeds of up to 2.5 layers/min.
The main machine structure is composed of two painted steel columns with two dead weight sliding blocks providing the counter balance for carriage offload and layer transfer. Carriage lift power is through a motor gear reducer unit with inverter control. This makes the lift/lowering motion faster and more gentle than alternative systems, without any sharp acceleration.
The carriage, where the product layer ready to be transferred from the pallet is loaded, is made of welded steel profiles. The unit is complete with pneumatically-operated side compacting bars that hold the product layer during transfer. Sliding tray motion is achieved through a motor gear reducer with inverter control.
Resolvis is available with a rotating column layer pad removal device with integrated empty pallet/tray removal. The system uses belt transmission where possible to reduce noise and eliminate the need for lubrication. The design allows the system to be configured simply as required and gives open access to all parts of the machine for easy set up and maintenance.
Production capacity: up to 2.5 layers/min
Downloads
Related Products

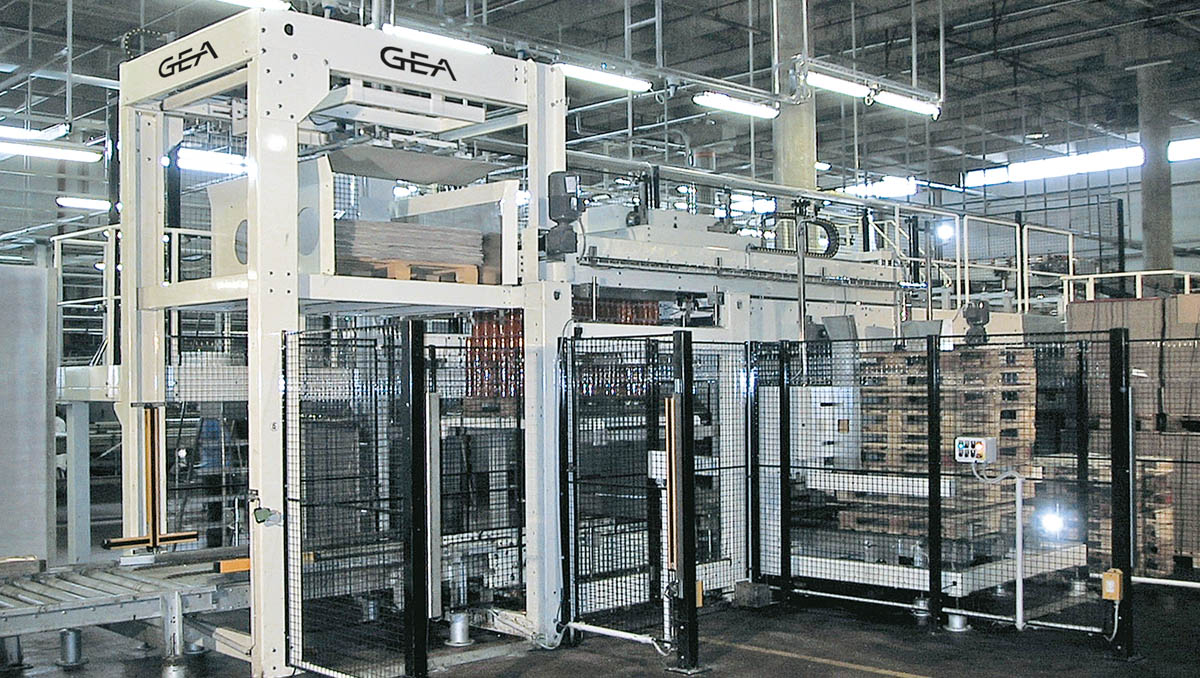

Depalletizer Velox
Depalletizer Velox discharges product from the top and features a vertical lift pallet unloading system designed for medium to high speed. The main operations (i.e. pallet lift, pallet transfer, etc.) are controlled through encoders: this gives extremely accurate positioning during operation.
Palletizer Agilis
Agilis is a palletizer with high level product infeed and a vertical lift pallet loading system. Depending on the production speed required it’s possible to configure a single, double or triple infeed with row preparation on positive belts. Agilis is also available with a pack divider or manipulator to speed-up the production and/or to secure uns...
Palletizer Artis EVO
Low level infeed mono–column type palletizer Artis EVO features a steady pallet loading system and an innovative layer pick-up head. It is suitable for medium/high production capacity.
Robotic Isles Omnia
Robotic isles Omnia are especially suitable for low and medium speed lines and when high flexibility is needed thanks to the simultaneous palletization/depalletization feature and fast gripping heads changeover. They represents a long term value investment.
