Layer Preparation System Polaris EVO
The layer preparation system Polaris EVO is equipped with pack gripping heads that move and/or rotate packs to their required position, in order to prepare a whole layer of products according to a pre-defined pattern.
Gripping head of the layer preparation system Polaris EVO
Polaris EVO is a modular system that can be installed as a single unit (for medium-speed lines) or in series (for high-speed lines and/or complex palletizing patterns).
The new handling robot operates in a SCARA-based configuration (Selective Compliance Assembly Robot Arm). This allows the handling grip to move along a horizontal axis (x-y) only thereby excluding gravity and reducing inertia. A third vertical axis can be used to adjust the grip height (format changeover). To reduce the load on the arm the main motors and are located in the fixed part of the robot and are assembled opposite each other on the same axis.
SCARA configuration guarantees the following advantages compared with traditional Cartesian systems: the footprint is more compact; there is better visibility and easier access for the operator as there are no obstructing support structures; the moving bulk is lower allowing a higher round trip speed; transport and installation is easier.
It is possible to connect the arm to different gripping heads, able to handle either single or multiple packs, as required by the project:
- Pneumatic gripping head: gripping head with lateral plates coated in shock-proof material. Pantograph type lateral opening and lifting, pneumatically activated.
- Motorized gripping head: self centering gripping head completely motorized to eliminate air consumption. The head is able to pick the packs up, both from the front or side, allowing high speed performance and complete gripping flexibility. The vertical movement of the plates is totally independent.
- Gripping head with plate overtake cycle: the system (patent pending) has been designed to reduce the downtime due to plate repositioning phases creating high working cycles. The head is able to pick the packs up, both from the front or side, allowing a complete gripping flexibility. The vertical movement of the plates is totally independent.
Production capacity: up to 133 ppm (with 2 heads).
Downloads
Related Products
Palletizer Agilis
Agilis is a palletizer with high level product infeed and a vertical lift pallet loading system. Depending on the production speed required it’s possible to configure a single, double or triple infeed with row preparation on positive belts. Agilis is also available with a pack divider or manipulator to speed-up the production and/or to secure uns...
Palletizer Artis EVO
Low level infeed mono–column type palletizer Artis EVO features a steady pallet loading system and an innovative layer pick-up head. It is suitable for medium/high production capacity.

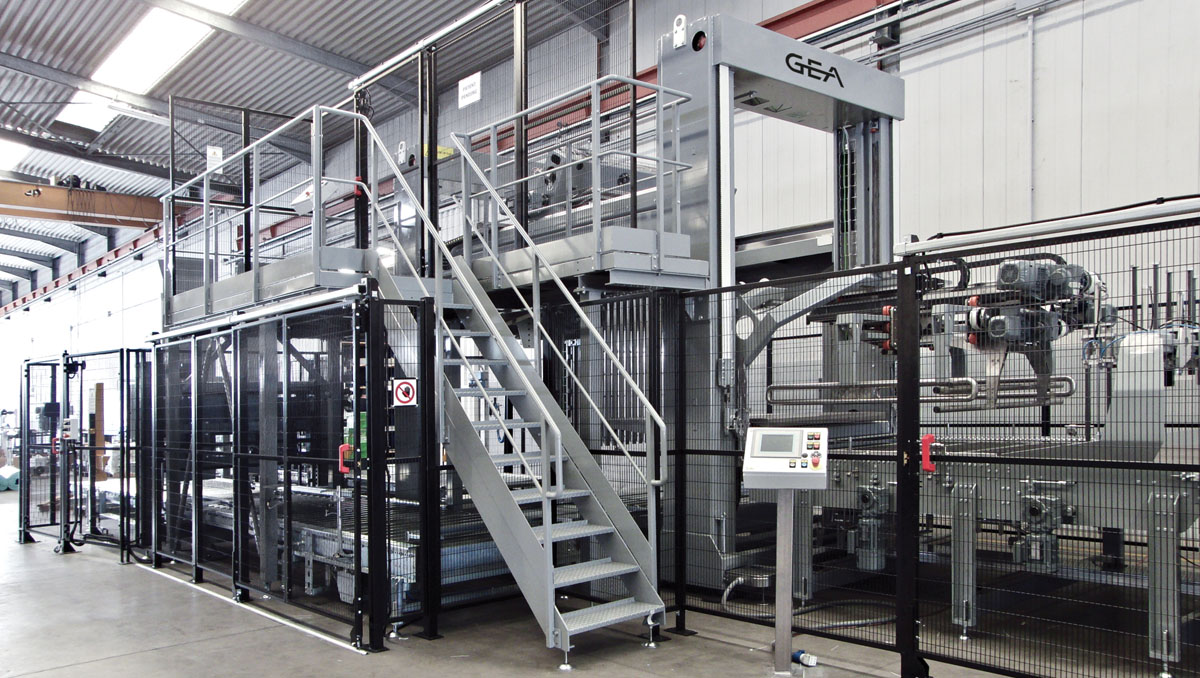

Palletizer Fluens
