Homogenizing Valves
Homogenizing NanoVALVE
Suitable for food, dairy, beverages and chemical emulsions process, NanoVALVE® gets the best out of the pressure: improves product viscosity and stability and minimizes running costs.
The NanoVALVE® design
The NanoVALVE® has been developed to achieve optimized performance at very low working pressure if compared to a conventional homogenizing valve.
The NanoVALVE® concept is based on a specific homogenizing valve profile, with optimized working gap and with a sharp edge for minimized travel distance between high pressure zone and high velocity zone, to release on product particles the most effective fluid-dynamic energy generated by high turbulence, localized cavitation, shear effects and wall impacts.
NanoVALVE® technology is suitable for different kind of applications: from food and beverages to dairy products: milk, yoghurt, cream and milk with flavors.
Sustainability follows the right choice
The various homogenizing valve designs are fundamentally important along with the valve geometry. The NanoVALVE® design allows an increase in efficiency and a reduction in operating pressure (tests demonstrates up to 20% lower operating pressure compared to the GEA standard valve) providing energy savings and optimal use of the ingredients and resources.
Technical features

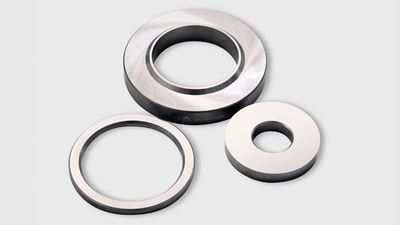

- Available both in single and double stage
- Features in tungsten carbide
- 3-A validation
- CIP cleanability guarantee
- Aseptic version
- Reversible impact head
- Stable and self dampening pneumatic control
