Free Stall Alley Cleaner with Chain
System designed to clean small to medium size barns
7/8” (22 mm) and Pintle chains Systems
Field proven free stall cleaner systems using the 7/8″ (22 mm) or the pintle chains.1/2” (13 mm) chain System
This system distinguishes itself with its compact vertical chain drive unit and the high quality fabrication of the 13 mm chain.
7/8” (22 mm) and Pintle chains Systems
7/8” (22 mm) and Pintle chains Systems
7/8″ (22 mm) Chain
Each weld on the 7/8" (22 mm) chain is done by a welding robot. This robotic system increases manufacturing speed, but above all, it produces exceptional quality chain on a constant basis.Pintle Chain
The pintle chain requires a smaller groove and has a flatter surface which is good for the cow’s well-being.Corner Wheels
The corner wheels and chain can be installed either in a groove or mounted on the floor. The groove for the chain ensures the scraper remains centered in the alley and keeps the chain hidden in the floor. Both 7/8" (22 mm) and Pintle chain wheels can be mounted either with Oilite bushing or tapered roller bearings with seals.H-86 Reversible Drive Unit
- Long lasting drive sprocket – This sprocket is designed to accept the stretch of the chain, which is minimal and to last the whole life time of the chain.
- Well thought out equipment – The H-86 Reversible Drive Unit has a safety clutch that protects the mechanical components from excessive load if the scraper encounters obstacles.
- Minimum maintenance – The maintenance on the H-86 Reversible Drive Unit is limited to greasing through easy to reach grease points and to lubricate some other parts once in a while. The chain tightening is easily accomplished by means of the quick tensioner located at the back of the drive unit.
- Safe for your herd – The 4th Reduction on the H-86 Reversible Drive Unit allows for reducing the speed of the scrapers and make them move at an efficient cleaning speed while being safe for the cows.
- Maximum length of chain – 750 feet for two alleys and 600 feet for a barn having four alleys.
1/2” (13 mm) chain
1/2” (13 mm) chain
½″ (13 mm) Chain
Two type of ½" (13 mm) chain available:
Classic Chain Grade 100: 36 to 46 Rockwell C – Good hardness, and good resistance to wear.
HD-Pro Chain Grade Ultra: 55 to 60 Rockwell C – Exceptional hardness that contributes to limit wear to minimum.
- Lightness of the chain – eases installation.
- Smaller chain link – fits in a 2" X 2" (51 m m X 51 mm) groove.
Vertical Chain Drive Unit
- Compact design – offering greater flexibility of installation.
- Higher corrosion resistance – thanks to its galvanized steel construction.
- Low energy consumption – the vertical drive unit is operated by a 1 HP motor.
- Versatile system – this chain system can be installed with or without groove. A system configuration combining the ½" (13 mm) chain with steel cable or Dyneema® rope is available. This allows the total length of the stroke to be extended.
- Adaptable system – able to operate two alleys of different lengths.
- IVRpro control panel – to program start times while enjoying the benefits of improved load sensing technology exclusive to GEA. The IVRpro control panel is also offered with the Max@ccess option.
- Offered with the V-Shape and 16º scrapers.
Drive Unit Configurations
The vertical chain drive unit is available in various configurations to ease barn layout. It can be installed with the wheels in line, at 90° or at 180°. The 90° corner installation requires three corner wheels instead of four.Downloads
Related Products
Hydraulic Free Stall Alley Cleaner
Well suited system to clean one alley or alleys of different length using a single power unit.
Scraper - 16°
Ruggedly built, the 16° Scraper cleans the alleys effectively. The 16° angle designed is for stabilizing the scraper. The manure is directed evenly toward the center where the pulling force is applied.
Scraper - High Profile
To handle manure containing a lot of straw.

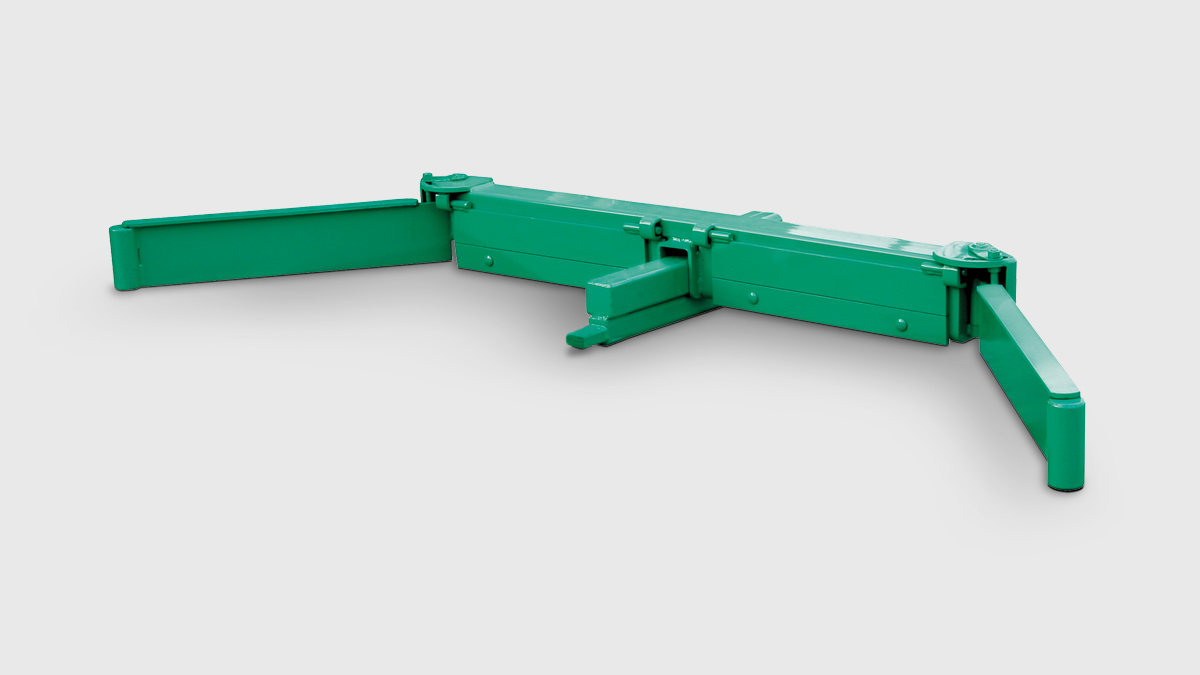

Scraper - Straight
Best suited when space is limited at the drop point as the scraper is straight and shorter.
