Double-seat valves
FLOWVENT Double-seal valves
The easy solution for CIP feeds: GEA FLOWVENT Double-seal valves can be applied as efficient alternatives for secure separation of incompatible products within CIP systems or gas blocks.
The easy solution for CIP feeds:
GEA FLOWVENT Double-seal valves can be applied as efficient alternatives for secure separation of incompatible products within CIP systems or gas blocks.
Function of the valve
The Double-seal valve separates media in two pipelines. The two seals are both located in one valve disc. Hence, they cannot be moved apart separately as in double-seat valves. Therefore, this valve type is recommend for CIP systems and gas blocks.
Application
Double-seal valves are predominantly used in areas where hygienic safety is not critical, e.g. CIP systems and gas blocks (brewery).
Technical data of the standard version
| Recommended flow direction | Against the closing direction |
| Material in contact with product | AISI 316L |
| Material not in contact with product | AISI 304 |
| Seal material in contact with product | EPDM, FKM |
| Ambient temperature | 0 to 45°C |
| Air supply pressure | 6 bar (87 psi) |
| Product pressure | 5 bar (73 psi) |
| Surface in contact with product | Ra ≤ 0,8 μm |
| External housing surface | Matte |
| Control and feedback system | FLOWVENT Control top |
| Actuator type | Pneumatic actuator air / spring |
| Connection fittings | Welding end |
| Identification | Adhesive label |
| Certificates | FDA |
Downloads
Related Products

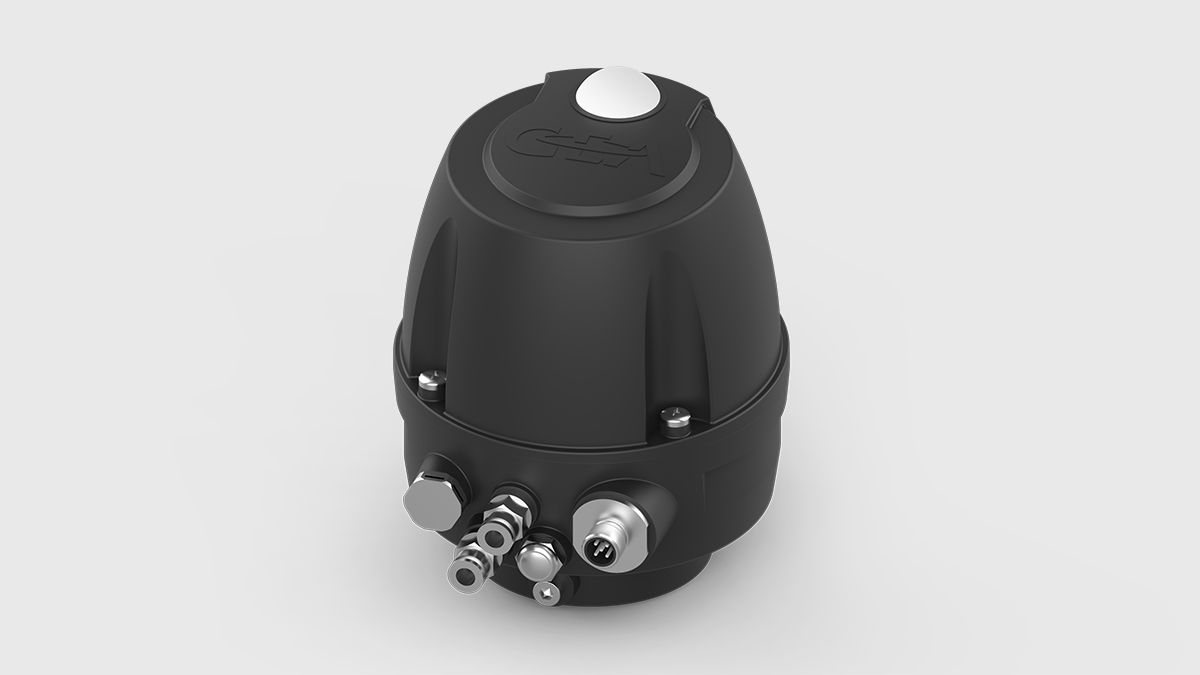

FLOWVENT Control top
GEA's state-of-the-art control top technology means you can set-up each installed GEA FLOWVENT valve unit automatically within seconds, even without special training.

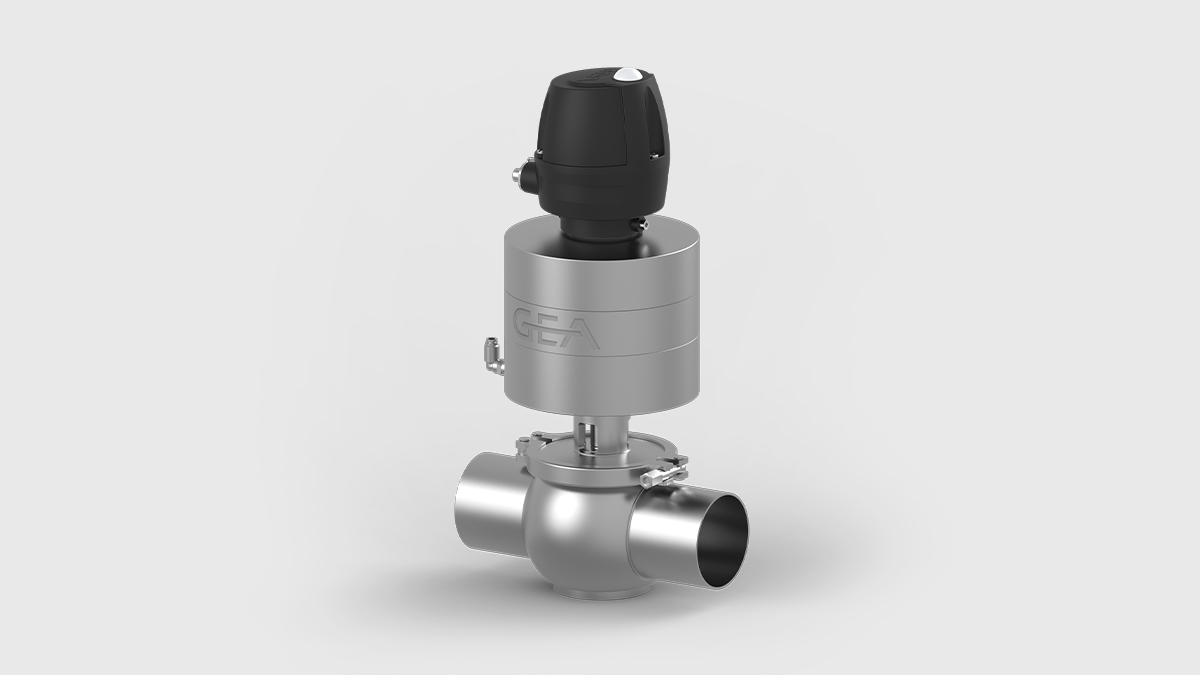

FLOWVENT Shut-off valves
The key to guiding your process flow: GEA FLOWVENT Shut-off valves are used for easy shut-off solutions in hygienic applications.

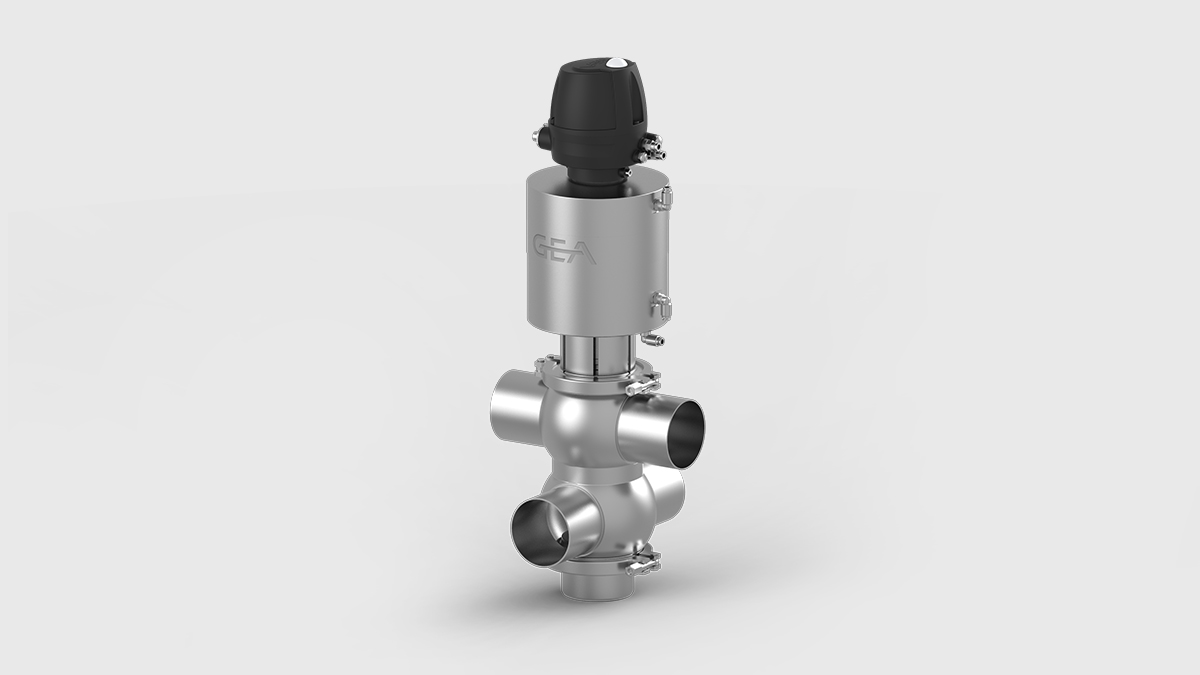

FLOWVENT Mixproof valves
State-of-the-art for your secure applications: GEA FLOWVENT Mixproof valves are used for the hygienically safe shut-off of incompatible media at pipe intersections.

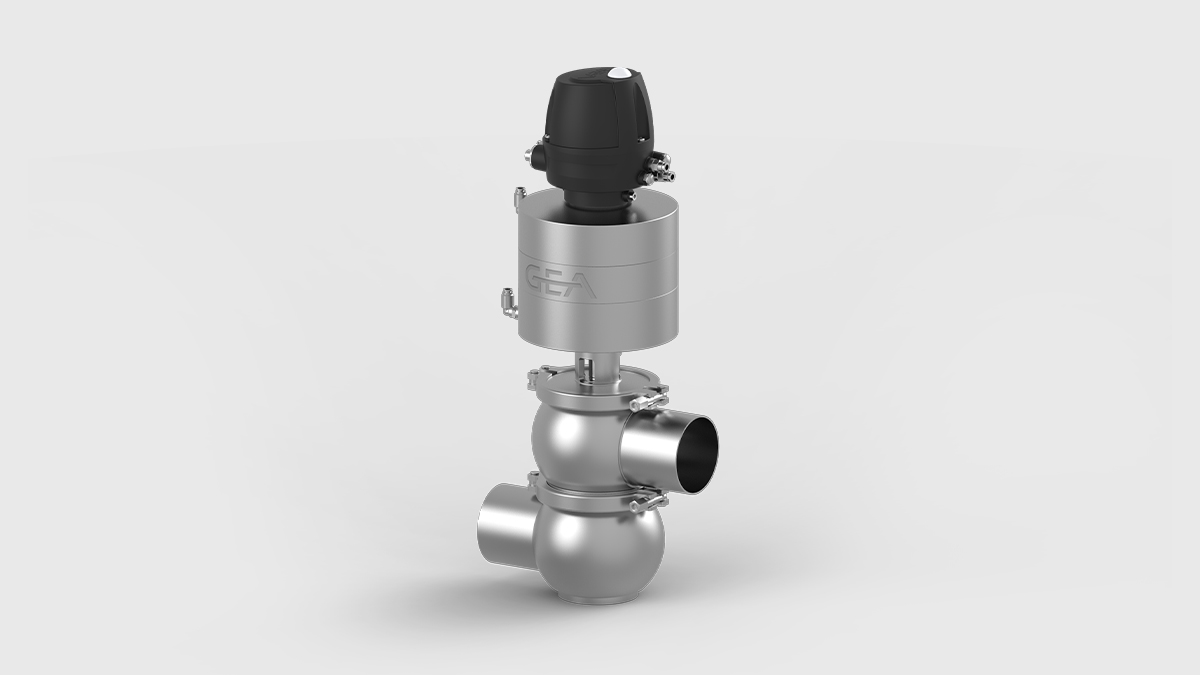

FLOWVENT Divert valves
The master tool for all changeover functions: GEA FLOWVENT Divert valves are used for easy changeover solutions in hygienic applications.
