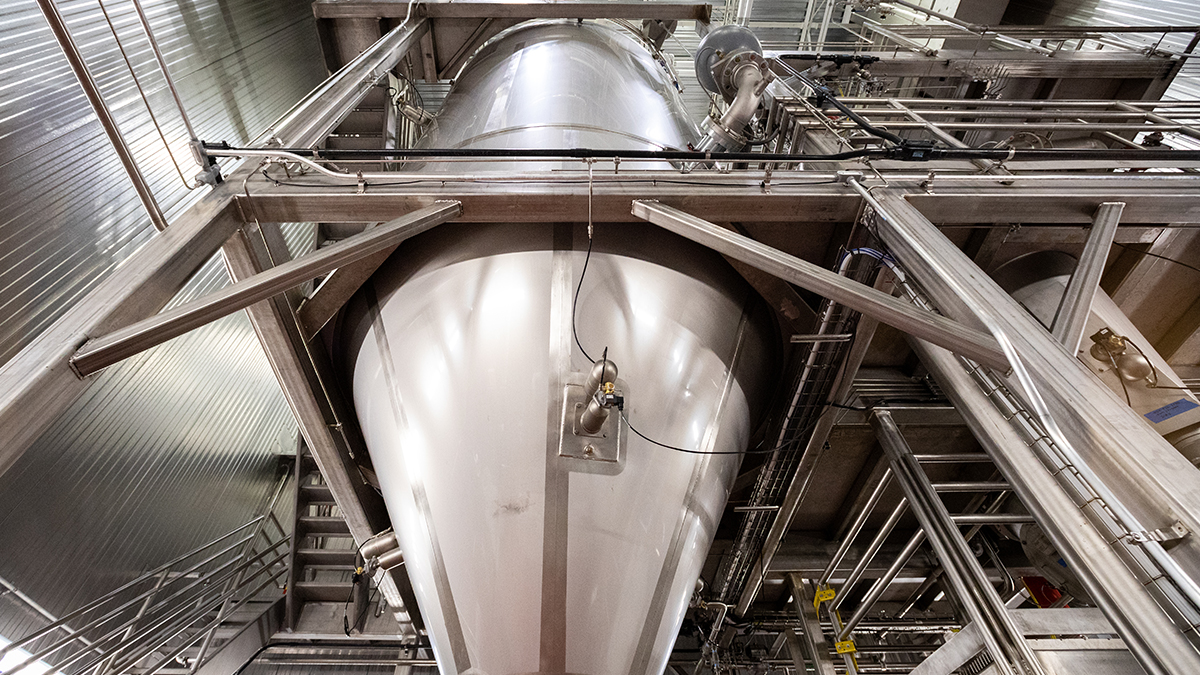

NOZZLE TOWER Spray Dryer
Across a wide variety of industries, there is a demand for a uniform powder of fine particles. The NOZZLE TOWER Spray Dryer is the ideal solution in the production of such products. Available in different designs, it is applied in a wide range of industries.
The drying process
Drying air is introduced at the top of the drying chamber through an air disperser designed to obtain a controlled low velocity airstream downwards in the drying chamber. The product, is atomized by a set of nozzles placed just below the air disperser. This ensures a gentle drying of the particles as they pass through the drying chamber. The design ensures a long residence time in the chamber.
The drying air is exhausted from the drying chamber through the "bustle", formed by an enlarged conical section. The smallest entrained particles are separated in the SANICIP® Bag Filter, from where they can be returned to the nozzles for agglomeration or discharged directly into a pneumatic cooling and conveying system. The main fraction can be pre-cooled by introducing cooling air into the lower part of the chamber cone prior to product discharge into the conveying system for bagging-off.
The NOZZLE TOWER is also available in a counter-current version with fountain nozzles for heavy feed stocks typically pertaining to the chemical industry.
Downloads
Related Products

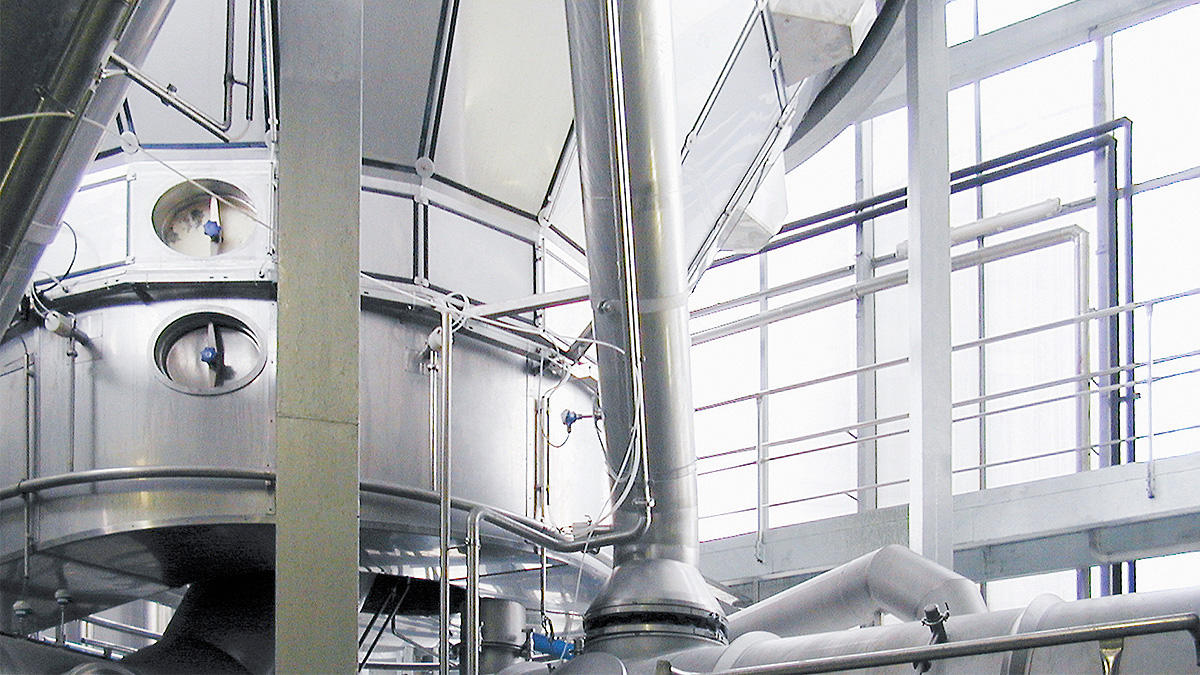

COMPACT DRYER Spray Dryer
The COMPACT DRYER is the perfect choice whether it is a matter of whey powder or dense milk-powder production.
Conventional Spray Dryer
Cost effective single-stage dryer that can be upgraded to let you create a wide range of powders for industries as diverse chemicals and food ingredients

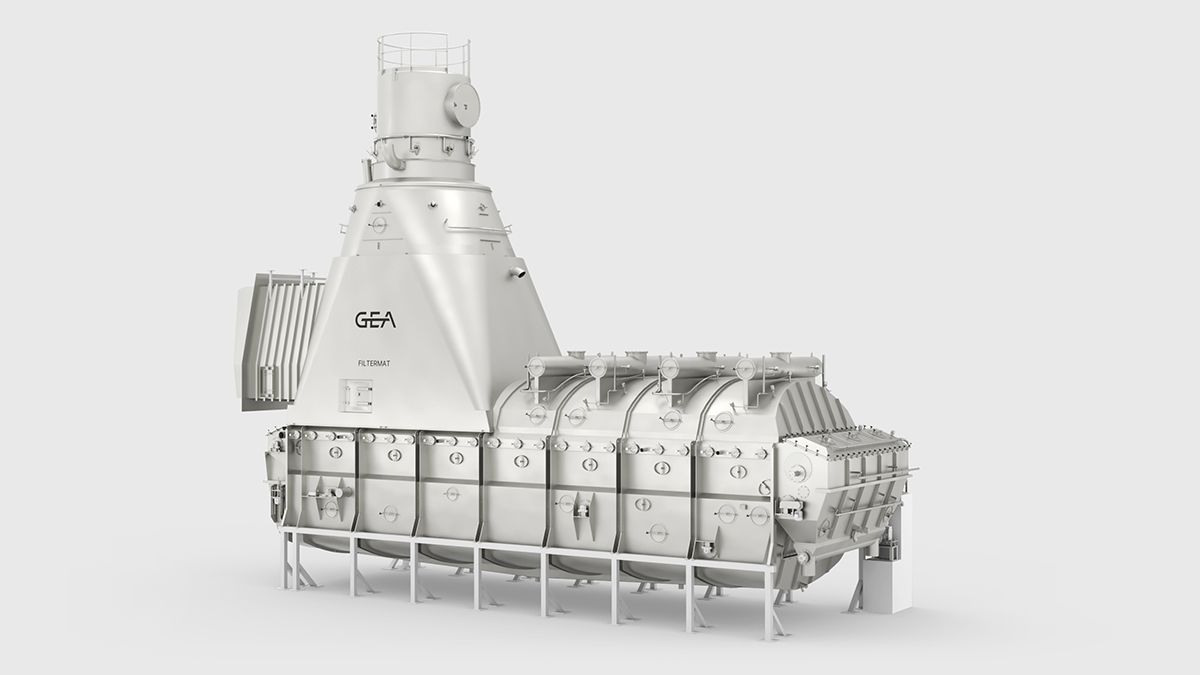

FILTERMAT® Spray Dryer
The FILTERMAT® spray dryer efficiently and gently transforms heat-sensitive and difficult-to-dry products into free-flowing, agglomerated powders.

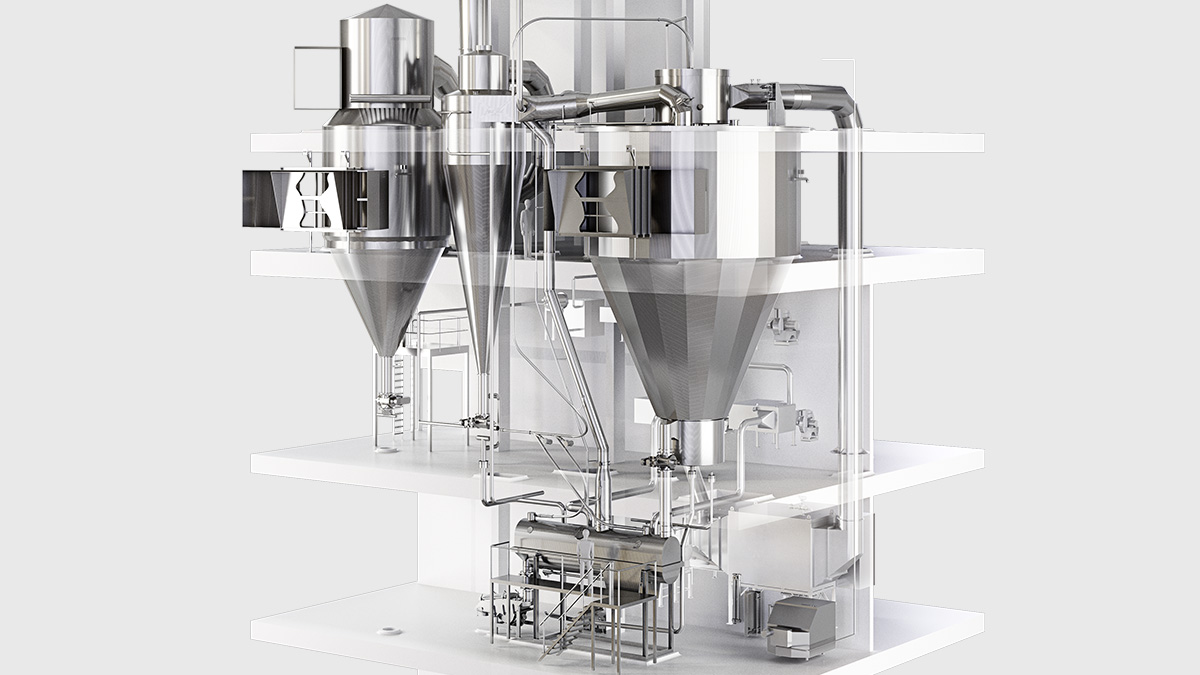

FSD® Spray Dryer
