GEA Aseptic Blow Fill System ABF 2.0
Suitable for both high and low acid bottling operations, the ABF 2.0 combines an aseptic blow molding module with aseptic filler and capper modules, and features a dry hydrogen peroxide-based sterilization technology for preforms and caps.
With the ABF technology, LA and HA aseptic beverages with different shelf lives can be filled on the same system
The concept
The preforms are sterilized as soon as they leave the oven, where they are heated to optimize their thermal profiling and to minimize energy consumption and the use of the sterilizing agent. The internal and external surfaces of the preforms are treated with vaporized hydrogen peroxide (VHP) using a robust, controlled and condensation-free process to minimize residue values and achieve a 6 log decontamination performance.
After the sterilization process, the preforms enter a pre-sterilized microbiological isolator – where the aseptic blowing wheel is located – and are blown with sterile air supplied through a filtered circuit that includes a dedicated VHP sterilization system.
The fresh-blown sterile bottles are transferred by the neck from the aseptic blower to the aseptic filling module without leaving the sterile zone. The aseptic filler is enclosed in the same microbiological isolator, in which sterility is maintained during production with an overpressure of class 100 sterile air. As well as the filler module, the capper module in the ABF 2.0 system is specifically designed for aseptic applications and completely enclosed within the microbiological isolator.
Resource-efficient solution
The air recovery system in aseptic blower is one of our most resource-efficient solutions and carries the Add Better label.
The Add Better label relates to the air recovery system in GEA ABF 2.0 which reduces the amount of energy consumption for the compressed air needed for blowing process and cap sterilization up to 31% when compared to its predecessor model.
The air recovery system will be released in 2024.
Benefits:
- Full automated sterilization of the blowing, filling and capping modules, resulting in an effective, repeatable and automated process, needing no operator intervention
- Low chemical and no water consumption during production
- Minimum H2O2 residuals in the container (<0.5 ppm)
- Limited downtime (3 hours cleaning and sterilization cycles) for product changeovers
- Microbiological validation according to specific protocols for sensitive beverage industry
- PoC approved, being based on ABF 1.2 FDA approved architecture
Performance
The versatile ABF 2.0 aseptic production system can process extremely sensitive, high and low acid, still or carbonated beverages, with or without particles. It can deliver a 6 log reduction for both cap and preform decontamination in a single sterilization phase and offers continuous aseptic production runs of 165 hours without stoppages or intermediate cleaning.
H2O2 technology for cap and foil sterilization
Similar to the preform sterilization system, the ABF 2.0 cap sterilization module – Sterilcap VHP R – also uses VHP at the correct concentration and temperature. The specially adapted design, including a rotary cap buffer that guarantees the necessary redundancy required by the blow-fill technology, ensures that all the cap surfaces are exposed, preventing any ‘shadow’ areas and avoiding the risk of cap deformation.
The cap sterilization module can be used to treat both sport and flat caps. Offering rapid changeovers without any mechanical intervention and without losing sterility, the ABF 2.0 solution offers maximum flexibility when treating aluminum foil closures with Sterilfoil VHP L technology.
Aseptic blower
The GEA Aseptic Blow Molder is an integral part of the ABF 2.0 system. It is an aseptic blower that produces sterilized bottles by aseptically blowing preforms being previously sterilized with hydrogen peroxide vapor (VHP).
Blow molder aseptic design
Every component inside the sterile zone is chemical-resistant. Periodically, the internal surfaces of the blower can be cleaned by foaming and sterilized by vaporized hydrogen peroxide (VHP), which is also used to treat the air pipes and stretching rod housings before starting the production cycle.
The environmental sterilization process is completely automated requiring no manual intervention from the operator, therefore greatly decreasing any risk of system recontamination.
The aseptic blowing process
The preform blowing process is performed with sterile air; this requires both the use of microfiltration to sterilize the air and VHP to sterilize the piping. For this reason, GEA has developed a patented air blowing block that can be sterilized to maintain high levels of reactivity and reliability and decrease the pressure drop and dead volume.
Sterile stretching rod (patented)
All the parts that touch the sterilized preform and/or the bottle must be sterile before starting production and therefore it is mandatory to have a sterile stretching rod. The GEA system (patented) allows the stretching rod to be kept inside a sterile housing, sterilized with VHP. The magnetic joint between an internal magnet connected to the stretching rod inside the aseptic housing and an external one connected with a standard moving system by an electrical motor also enables the magnets to disengage automatically if a preform jams during the stretching phase.
Downloads
Related Products

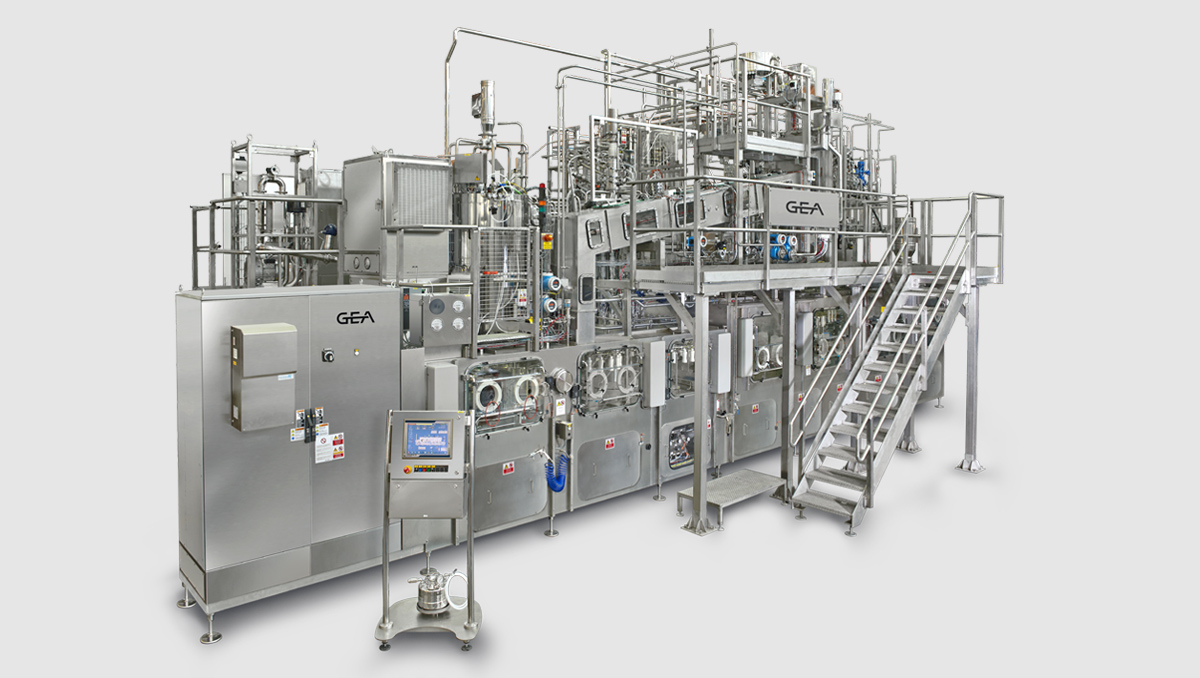

Aseptic Filling Bloc Modulbloc
FDA-validated Modulbloc technology is a smart solution for low/medium-speed filling lines. It’s suitable for both HA and LA beverages, can reach production speeds of up to 18,000 bottles per hour on 500 ml bottles and allows a line availability of 165 hours without the need for intermediate SOP cycles during production.
Aseptic Filling Bloc Whitebloc
Specifically designed for the dairy industry, Whitebloc is the ideal solution for the aseptic bottling of products in HDPE and PET containers. Whitebloc uses an hydrogen peroxide (H2O2)-based sterilization technology to preserve the shelf-life of milk-based drinks and sensitive beverages.

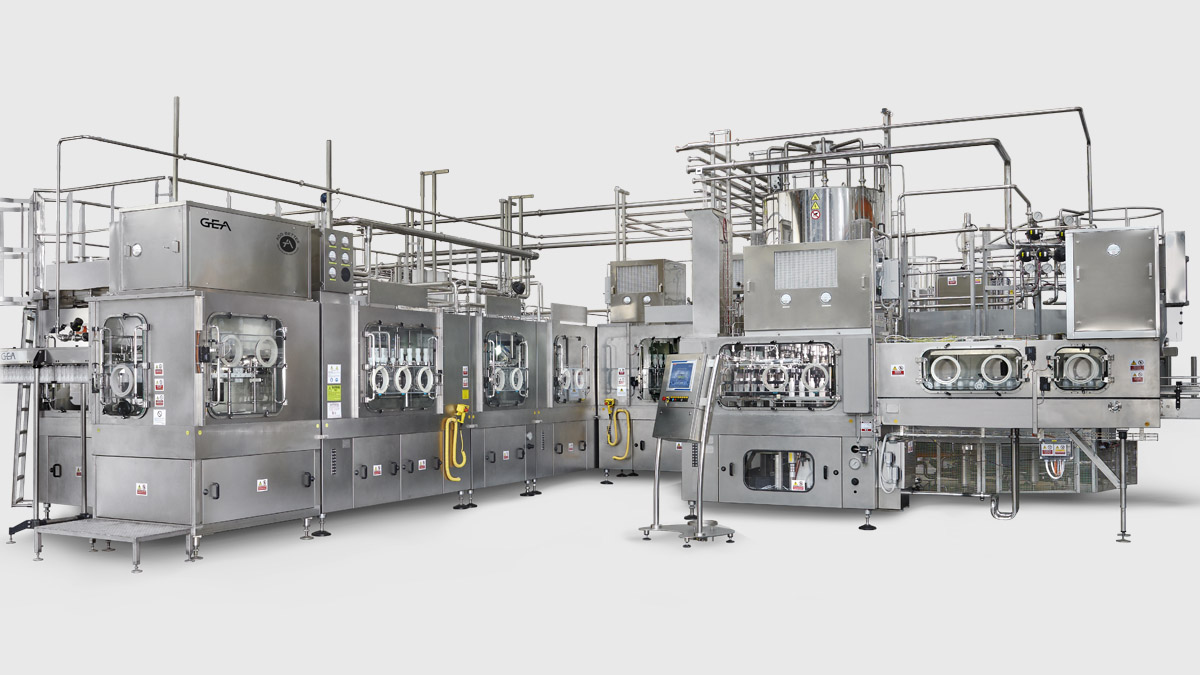

Aseptic Filling Bloc ECOSpin2 Zero
ECOSpin2 Zero is the seventh generation of GEA PAA-based aseptic filling blocs, a very compact system that comprises a rotary sterilizer, filler and capper enclosed in a microbiological isolator. FDA-approved, ECOSpin2 Zero is equipped with all the necessary process units to produce sterile water and a PAA solution, and filter all the process flu...
