Quick and easy selection through standardized modular system
The TP is the ideal pump for standard applications with low complexity - without any compromise on quality.

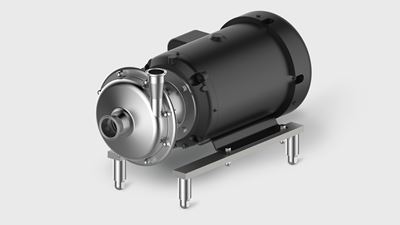

The GEA Hilge TP centrifugal pump has been designed for hygienic pumping of demanding media. The spiral housing ensures extremely gentle product handling due to the low flow velocities.
The spiral housing of the GEA Hilge TP is made of deep-drawn CrNiMo rolled steel. This material has an excellent surface finish, which is essential for optimum cleanability and ensures process reliability. The product range of GEA Hilge TP pumps is EHEDG certified.
Features and benefits
- Stable design for operating pressures up to 16 bar
- Low NPSH value avoids early cavitation to the pump
- Energy-efficient operation thanks to optimized speed control and/or impeller trimming
Centrifugal pump suitable for ATEX areas
For applications in potentially explosive atmospheres, the TP is available with appropriate motors and the EC Declaration of Conformity according to the ATEX Directive 2014/34/EU and can be used in equipment category 2 and 3.
Service-friendly concept due to quick and easy replacement of wear parts
Due to the modular design of the TP series with only two seal diameters for 11 sizes, favorable spare parts inventory is a great advantage for customers.
The standardized wear parts of the TP series are also used in the self-priming TPS series, thus reducing the stocking of spare parts.
If the motor needs to be replaced, IEC standard motors with balanced clamping shafts can be used for simple and cost-effective exchange.

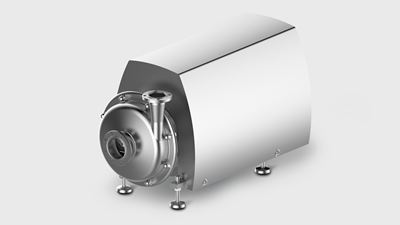

GEA Hilge TP 3050 Super
Technical data
| GEA Hilge TP | 50 Hz | 60 Hz |
|---|---|---|
| Flow | 220 m³/h | 240 m³/h |
| Head | 90 m | 130 m |
| Operating temperature | 140 °C | |
| Operating pressure | 16 bar | |
Wide range of applications for the standard centrifugal pump
The GEA Hilge TP series has been designed for a variety of applications:
Beverage:
- Beer (incl. wort, mash, yeast)
- Alcoholic drinks
- Softdrinks
- Water
- CIP
Dairy:
- Milk
- Cream
- Yoghurt
- Molke
- CIP
Food:
- Flavors
- Proteins
- Liquid food
- Oils
- CIP

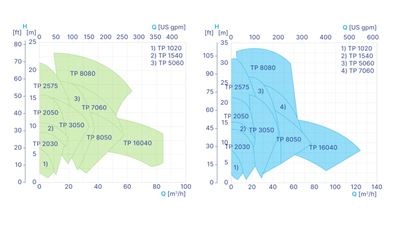

GEA Hilge TP - Performance curves
Sealing of GEA Hilge TP centrifugal pumps according to EHEDG standards
The elastomer sealing is executed according to EHEDG standards. The special groove enables the seal is kept reliably in place at all times. The shape of the groove is based on FEM analyses. The metallic stop allows a defined compression of the seal, ensuring gap-free sealing against the product chamber without dead corners
Suitable mechanical seals for a wide range of pumped media
- Single mechanical seals in sterile execution
- Single mechanical seals, flushed (quench)
- Double mechanical seals
- Standard seal face material: carbon/stainless steel and SiC/SiC
- Standard O-ring material: EPDM or FKM
- Additional designs and materials available upon request
