Check valves for installation between two flanges
RVZ Check Valves
Check valves open autonomously by the pressure which is exerted by the working medium upon the valve disc. They start to open at a differential pressure of 0.01 to 0.05 bar and are fully open between 0.1 and 0.2 bar. As soon as the flow is interrupted or the flow direction is reversed, the valve closes automatically. The closing function is supported by the elastic force of the spring or by the valve disc’s own weight. RVZ check valves are designed for installation between two counterflanges that are attached directly to the valve housing. With this design the medium flow is not being diverged as it is the case for other check valve types. GEA check valves are designed for installation in the refrigerant circulation of industrial refrigeration systems. They are installed on the pressure or suction side of compressors or in pipes in which only one direction of flow is intended.

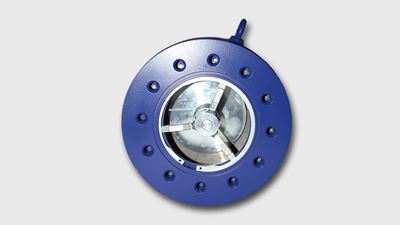

Check Valve type RVZ
Technical features
- Available in steel or stainless steel
- Selection of body material as per German DIN EN12284, AD2000 Series W
- Working mediums: refrigerants as per EN 378 p. 1, e. g. NH3, R22, R134a and blends with refrigerator oil; neutral, gaseous and liquid mediums; glycol-based cold brine
- Available with and without damping for different mounting positions and flow directions
| RVZ check valves | |
| material | steel or stainless steel |
| nominal size | DN 25-400 |
| nominal pressure level | PS 25, PS 40, PS 63 |
| temperature range | -60 °C to +150 °C |
| temperature range for HT valve series | -10 °C to +200 °C |
| connection | flanged connection |
| other | available with hot gas connection
linear bearing oil drain |
